Opple LED Spot Ava downlight/spotlight/spotlight, subcategory spotlight, luminous flux 520lm, effective luminous flux according to IEC 520lm, temperature 2700K, light color white, suitable for lamp power 7W, system power 7W, housing white, suitable for recessed mounting, degree of protection (IP) IP44.
Specifications
Suitable for surface mounting : No
Suitable for built-in mounting : Yes
Suitable for wall mounting : No
Suitable for suspended mounting : No
Suitable for ceiling mounting : No
Suitable for traverse mounting : No
Suitable for pedestal/floor mounting : No
Suitable for light-track mounting : No
Suitable for clamp-mounting : No
Adjustability : Swivelling
With movement sensor : No
With light sensor : No
Lamp type : LED not exchangeable
With light source : Yes
Suitable for number of lamps : 1
Lamp holder : None
Material : Aluminum
Color housing : White
Material cover : Plastic, transparent
Surface brushed : No
Voltage-type : AC
Nominal voltage (V) : 220 V to 240 V
Type of control gear : LED operating device current-controlled
With control gear : Yes
Exchangeable control gear : No
Dimming depending on control gear : No
Dimming 0-10 V : No
Dimming 1-10 V : No
Dimming DALI-2 : No
Dimming DALI : No
Dimming DMX : No
Dimming DSI : No
Dimming potentiometer (integrated) : No
Dimming GPRS : No
Dimming LineSwitch : No
Dimming manufacturer’s proprietary system : No
Dimming mains voltage modulation : No
Dimming phase cut-off : Yes
Dimming phase cut-on : Yes
Dimming programmable : No
Dimming RF : No
Dimming Sine Wave Reduction : No
Dimming Touch and Dim : No
Dimming Zigbee : No
Dimming with push-button : No
No dim function : No
Reflector : High-gloss
Light distributor : Reflector
Light sharing : Symmetric
Beam angle : Medium beam 21-40°
Light outlet : Direct
Energy efficiency class : A+
Rated life time L70/B50 at 25 °C (h) : 50000
Degree of protection (IP) : IP44
Impact strength : IK02
Protection class : II
Rated ambient temperature according to IEC62722-2-1 (°C) : -20 °C to 40 °C
Suitable for lamp power (W) : 7 W to 7 W
Max. system power (W) : 7
Colour of light : White
Colour temperature (K) : 2700 K to 2700 K
Color rendering index CRI : 80-89
Luminous flux (lm) : 520 lm to 520 lm
Rated luminous flux according to IEC 62722-2-1 (lm) : 520
Power factor : 0.9
Color temperature adjustable : No
Luminous flux adjustable : No
Beam angle adjustable : No

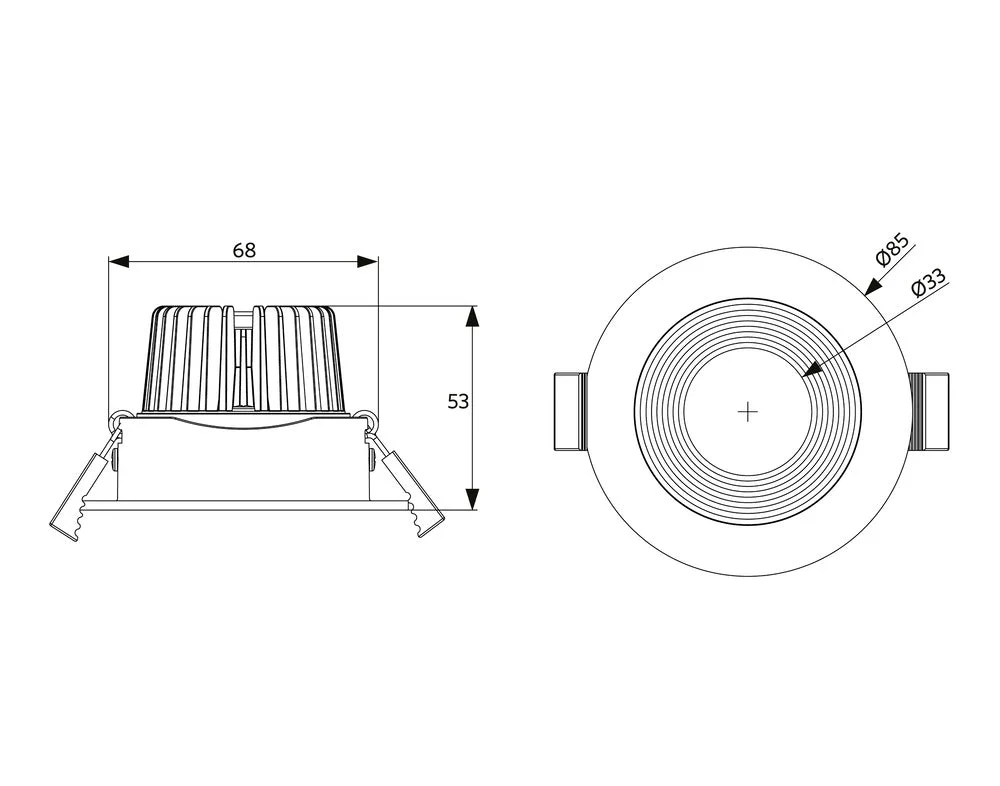

Width (mm) : 85
Height/depth (mm) : 53
Length (mm) : 85
Outer-diameter (mm) : 85
Built-in diameter (mm) : 68 mm to 76 mm
Type of wiring : Ending
Luminaire with limited surface temperature, sign “D“ : No
Max. number of luminaires per miniature circuit breaker B16 : 314
Max. number of luminaires per miniature circuit breaker C16 : 314
Emergency power supply integrated : No
Filament test according to IEC 60695-2-11 : 750 °C – 30 s
Luminaire efficacy (lm/W) : 74
Covering of the luminaire with thermally insulating material possible : No
IFTTT support available : No
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Compatible with Amazon Alexa : No
