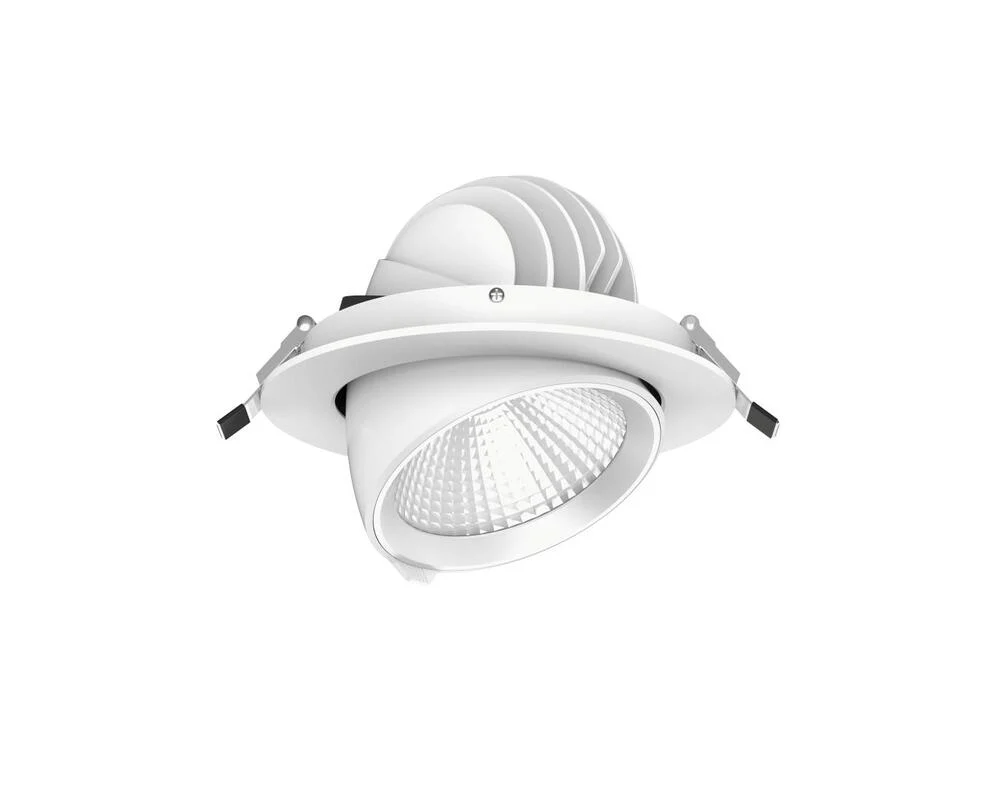

Opple LED Spot Performer Swing downlight/spotlight/spotlight, subcategory spotlight, temperature 3000K, suitable for recessed mounting, housing white, recessed diameter 120 – 130mm, degree of protection (IP) IP20, effective luminous flux according to IEC 1800lm, light color white, system power 20W, outer diameter 145mm.
Specifications
Suitable for surface mounting : No
Suitable for built-in mounting : Yes
Suitable for wall mounting : No
Suitable for suspended mounting : No
Suitable for ceiling mounting : Yes
Suitable for traverse mounting : No
Suitable for pedestal/floor mounting : No
Suitable for light-track mounting : No
Suitable for clamp-mounting : No
Suitable for low voltage cable system : No
Adjustability : Swivelling
With movement sensor : No
With light sensor : No
Lamp type : LED not exchangeable
With light source : Yes
Suitable for number of lamps : 1
Lamp holder : None
Material : Aluminum
Color housing : White
Material cover : Other
Surface brushed : No
Voltage-type : AC
Nominal voltage (V) : 220 V to 240 V
LED nominal current at constant current (mA) : 500 mA to 500 mA
Type of control gear : LED operating device current-controlled
With control gear : Yes
Exchangeable control gear : Yes
Dimming depending on control gear : No
Dimming 0-10 V : No
Dimming 1-10 V : No
Dimming DALI-2 : No
Dimming DALI : No
Dimming DMX : No
Dimming DSI : No
Dimming potentiometer (integrated) : No
Dimming GPRS : No
Dimming LineSwitch : No
Dimming manufacturer’s proprietary system : No
Dimming mains voltage modulation : No
Dimming phase cut-off : No
Dimming phase cut-on : No
Dimming programmable : No
Dimming RF : No
Dimming Sine Wave Reduction : No
Dimming Touch and Dim : No
Dimming Zigbee : No
Dimming with push-button : No
No dim function : Yes
Reflector : High-gloss
Light distributor : Reflector
Light sharing : Symmetric
Beam angle : Wide beam 41-80°
Light outlet : Direct
Energy efficiency class : A+
Energy efficiency class of the built-in lamp : A++, A+, A (LED)
Rated life time L70/B50 at 25 °C (h) : 70000
Constant light output (CLO) : No
Degree of protection (IP) : IP20
Impact strength : IK03
Protection class : II
Rated ambient temperature according to IEC62722-2-1 (°C) : -10 °C to 45 °C
Max. system power (W) : 20
Colour of light : White
Colour temperature (K) : 3000 K to 3000 K
Color rendering index CRI : 90-100
Rated luminous flux according to IEC 62722-2-1 (lm) : 1800
Power factor : 0.9
Color temperature adjustable : No
Luminous flux adjustable : No
Beam angle adjustable : No
Width (mm) : 145
Height/depth (mm) : 102
Length (mm) : 145
Outer-diameter (mm) : 145
Built-in diameter (mm) : 120 mm to 130 mm
Type of wiring : Ending
Luminaire with limited surface temperature, sign “D“ : No
Max. number of luminaires per miniature circuit breaker B16 : 101
Max. number of luminaires per miniature circuit breaker C16 : 101
Emergency power supply integrated : No
Luminaire efficacy (lm/W) : 90
Photobiological safety according to EN 62471 : RG1
Covering of the luminaire with thermally insulating material possible : No
IFTTT support available : No
Color consistency (McAdam ellipse) : SDCM6
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Compatible with Amazon Alexa : No
