Opple LED Downlight Downlight/spotlight/floodlight – 140063615

Opple LED Downlight Performer HG downlight/spotlight/light, subcategory downlight, effective luminous flux according to IEC 2480lm, temperature 3000K, light color white, suitable for lamp power 23W, system power 23W, housing white, suitable for recessed mounting, recessed diameter 200mm.

Specifications

Suitable for surface mounting : Yes
Suitable for built-in mounting : Yes
Suitable for wall mounting : No
Suitable for suspended mounting : No
Suitable for ceiling mounting : No
Suitable for traverse mounting : No
Suitable for pedestal/floor mounting : No
Suitable for light-track mounting : No
Suitable for clamp-mounting : No
Suitable for low voltage cable system : No
Adjustability : Not adjustable
With movement sensor : No
With light sensor : No
Lamp type : LED not exchangeable
With light source : Yes
Suitable for number of lamps : 1
Lamp holder : None
Color housing : Black
Material cover : None
Surface brushed : No
Voltage-type : AC
Nominal voltage (V) : 220 V to 240 V
LED nominal current at constant current (mA) : 315 mA to 315 mA
Type of control gear : LED operating device current-controlled
With control gear : Yes
Exchangeable control gear : Yes
Dimming depending on control gear : No
Dimming 0-10 V : No
Dimming 1-10 V : No
Dimming DALI-2 : No
Dimming DALI : No
Dimming DMX : No
Dimming DSI : No
Dimming potentiometer (integrated) : No
Dimming GPRS : No
Dimming LineSwitch : No
Dimming manufacturer’s proprietary system : No
Dimming mains voltage modulation : No
Dimming phase cut-off : No
Dimming phase cut-on : No
Dimming programmable : No
Dimming RF : Yes
Dimming Sine Wave Reduction : No
Dimming Touch and Dim : No
Dimming Zigbee : No
Dimming with push-button : No
No dim function : No
Reflector : High-gloss
Light distributor : Reflector
Light sharing : Symmetric
Beam angle : Wide beam 41-80°
Light outlet : Direct
Energy efficiency class : A+
Energy efficiency class of the built-in lamp : A++, A+, A (LED)
Rated life time L70/B50 at 25 °C (h) : 70000
Constant light output (CLO) : No
Degree of protection (IP) : IP44
Impact strength : IK02
Protection class : II
Rated ambient temperature according to IEC62722-2-1 (°C) : -10 °C to 40 °C
Suitable for lamp power (W) : 23 W to 23 W
Max. system power (W) : 23
Colour of light : White
Colour temperature (K) : 3000 K to 3000 K
Color rendering index CRI : 80-89
Rated luminous flux according to IEC 62722-2-1 (lm) : 2480
Power factor : 0.9
Color temperature adjustable : No
Luminous flux adjustable : No
Beam angle adjustable : No

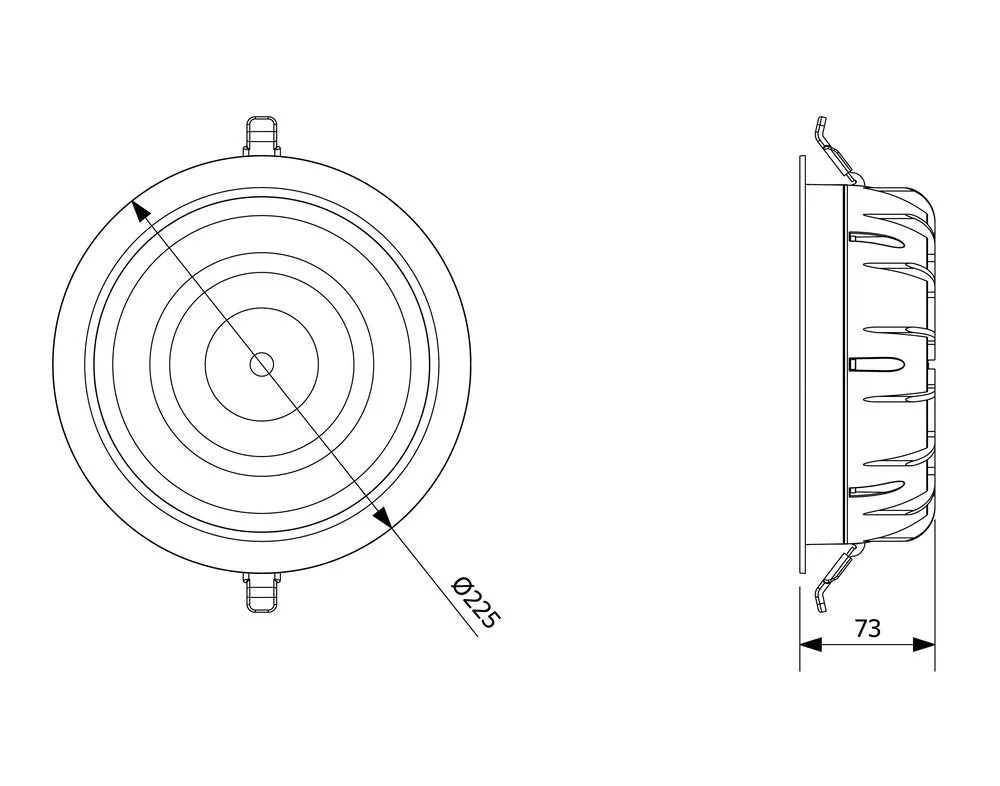

Width (mm) : 225
Height/depth (mm) : 73
Length (mm) : 225
Outer-diameter (mm) : 225
Built-in diameter (mm) : 200 mm to 200 mm
Type of wiring : Ending
Luminaire with limited surface temperature, sign “D“ : No
Max. number of luminaires per miniature circuit breaker B16 : 26
Max. number of luminaires per miniature circuit breaker C16 : 43
Emergency power supply integrated : No
Filament test according to IEC 60695-2-11 : 650 °C – 30 s
Luminaire efficacy (lm/W) : 108
Photobiological safety according to EN 62471 : RG1
Suitable for workplace according to EN 12464-1 : Yes
Covering of the luminaire with thermally insulating material possible : No
IFTTT support available : No
Color consistency (McAdam ellipse) : SDCM6
Unified Glare Ratio (UGR) : 19
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Compatible with Amazon Alexa : No
