About this item
- Turn key to ON Position and remains in ON position (key will pull out)
- Universal key switch. Will work with all gate and garage door openers
- Stainless steel plate accepts standard 19mm (3/4″) barrel
- Rated Current: 4A 125V AC, 2A 250V AC
- Switch terminals are colored for recognition
Description:

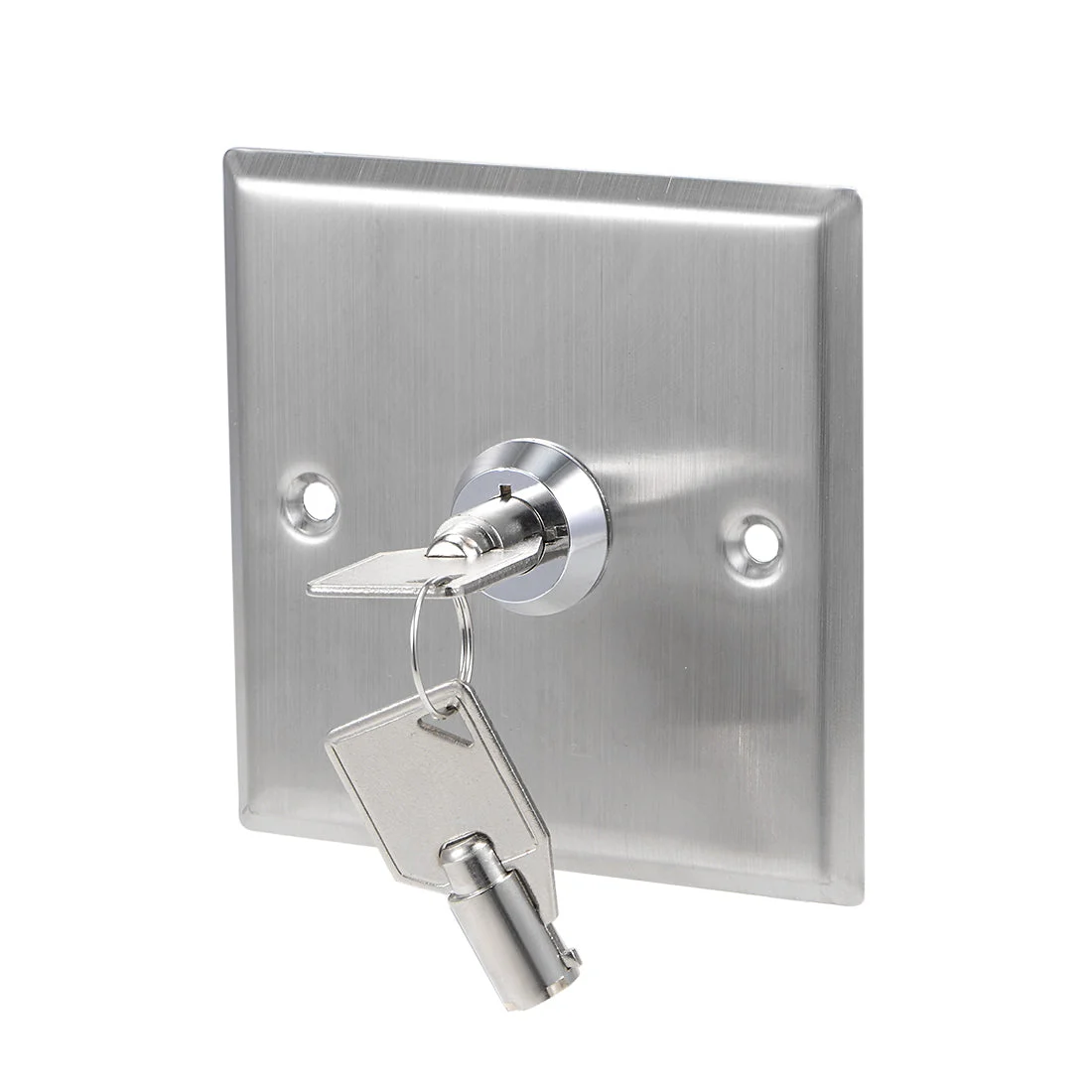

-This key switch is an emergency switch button with a special mechanical key for emergency situations.
-Exit switches come in handy when one wants to regulate the comings and goings of people.
-19mm key switch lock with 2 keys, nice smooth action and easy to mount.
-Key is removable in both ON and OFF positions.
Specification:
Panel Material: 304 Stainless Steel
Rated Power: 4A 125V AC / 2A 250V AC
Type: SPST
Contacts Type: 1 NO, 1 NC, 2 COM
Cable Length: 20mm / 0.79″
Panel Size: 86 x 86mm / 3.39″ x 3.39″ (L*W)
Mounting Cut Hole: 19mm / 3/4″
Panel Mounting Hole Diameter: 4.5mm / 0.18″
Panel Mounting Hole Distance: 60mm / 2.36″
Package Content:
1 x Key Operated Switch
2 x Keys
2 x Mounting Screws
