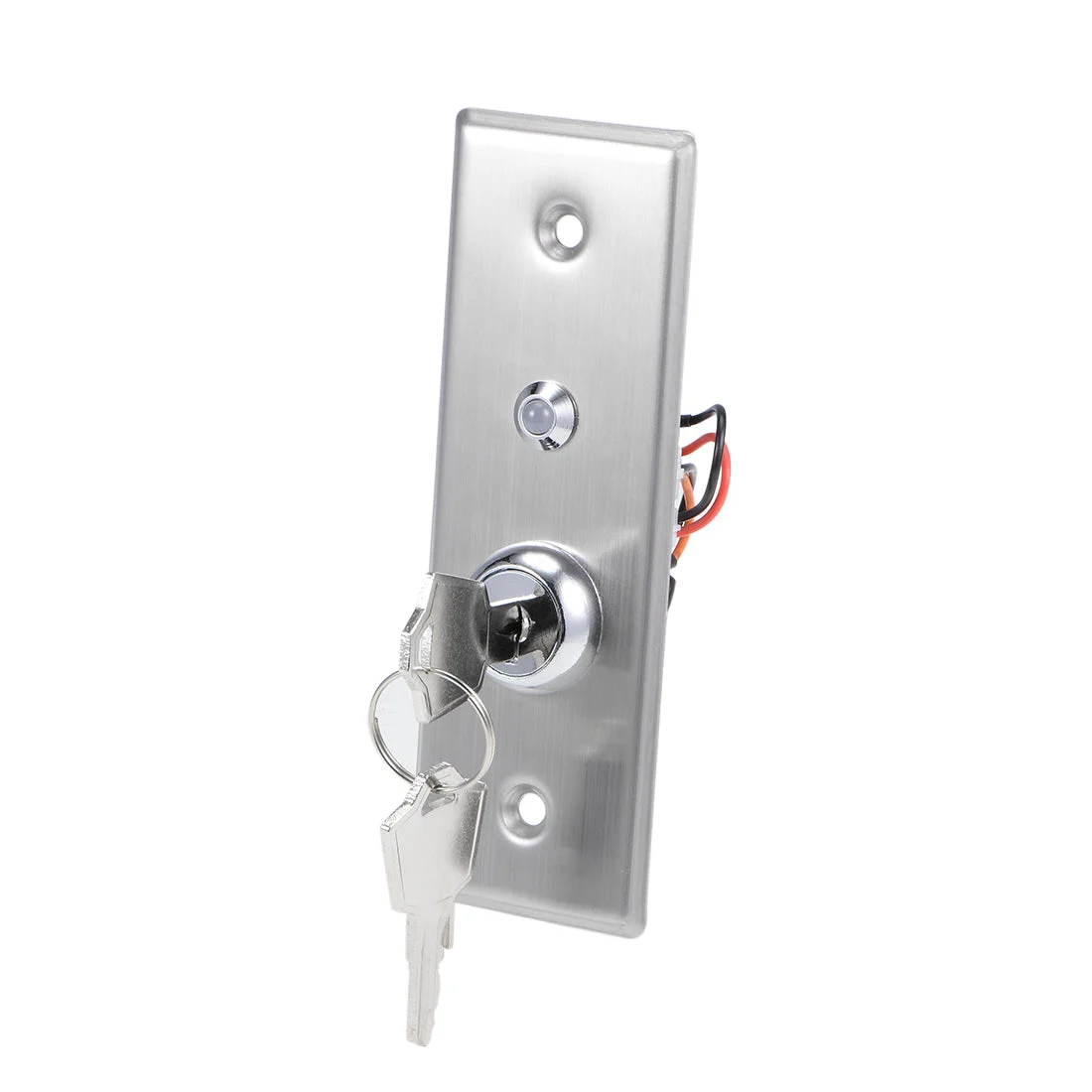

On Off Key Switch Exit Switches Emergency Door Release SPST with DC 12V Red Green LED Indicator

About this item

• Turn key to ON Position and remains in ON position (key will pull out)
• Universal key switch. Will work with all gate and garage door openers
• Stainless steel plate accepts standard 19mm (3/4″) barrel
• Switch Rated Current: 4A 125V AC, 2A 250V AC; Indicator Rated Voltage: DC 12V
• The indicator would change color when turning on or off the switch

Description:

-This key switch is an emergency switch button with a special mechanical key for emergency situations.

-Exit switches come in handy when one wants to regulate the comings and goings of people.

-19mm key switch lock with 2 keys, nice smooth action and easy to mount.

-Key is removable in both ON and OFF positions.

-The indicator would change color when turning on or off the switch.

-Anti-disassembly signal output.

NOTE:

NO-COM: Switch on, GREEN indicator on; Switch off, RED indicator on

NC-COM: Switch on, RED indicator on; Switch off, GREEN indicator on

Specification:

Panel Material: 304 Stainless Steel

Switch Rated Power: 4A 125V AC / 2A 250V AC

Indicator Rated Voltage: DC 12V

Type: SPST

Contacts Type: 1 NO, 1 NC, 1 COM, 2 TAMP

Panel Size: 115 x 40mm / 4.53″ x 1.57″ (L*W)

Mounting Cut Hole: 50 x 32mm / 1.97″ x 1.26″ (L*W)

Panel Mounting Hole Diameter: 4.5mm / 0.18″

Panel Mounting Hole Distance: 83mm / 3.27″

Package Content:

1 x Key Operated Switch

2 x Keys

2 x Mounting Screws
