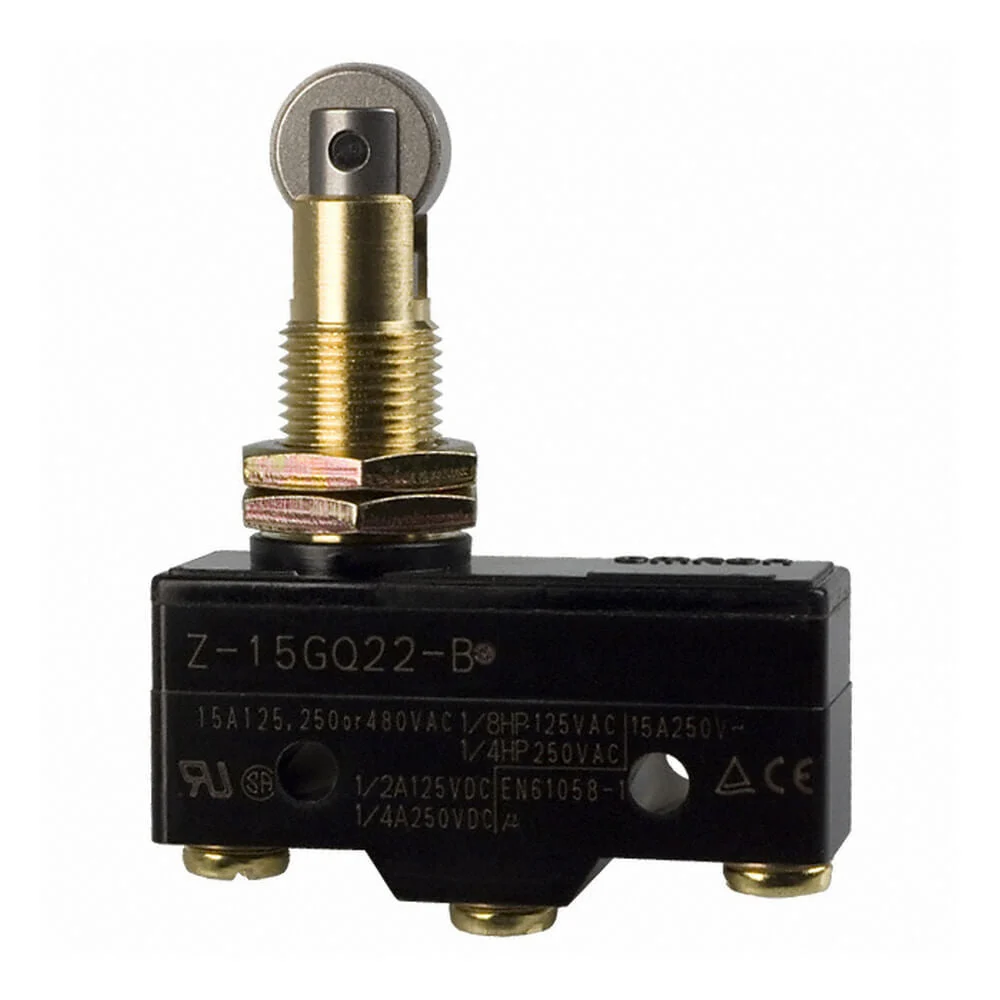

Omron SwitchES Industrial Limit Switch – Z15GQ22BOMI

Omron SWITCHES INDUSTRIAL Z15 limit switch, (WxH) 49.2×24.2mm, actuator type roller cam, housing plastic, actuator body roller cam, degree of protection (IP) IP00, switching function torque switching, electrical connection type, 1 changeover contacts.

Specifications

Width sensor (mm) : 49.2
Diameter sensor (mm) : 12.7
Height of sensor (mm) : 58.9
Length of sensor (mm) : 17.45
Rated operation current Ie at AC-15, 125 V (A) : 15
Rated operation current Ie at AC-15, 230 V (A) : 15
Rated operation current Ie at DC-13, 24 V (A) : 6
Rated operation current Ie at DC-13, 125 V (A) : 0.5
Rated operation current Ie at DC-13, 230 V (A) : 0.25
Switching function : Quick-break switch
Switching function latching : No
Output electronic : No
Forced opening : No
Number of safety auxiliary contacts : 0
Number of contacts as normally closed contact : 0
Number of contacts as normally open contact : 0
Number of contacts as change-over contact : 1
Type of interface : None
Type of interface for safety communication : None
Construction type housing : Cuboid
Material : Plastic
Coating housing : Other
Type of control element : Roller cam
Alignment of the control element : Roller cam straight
Electrical connection : Other
Status indication : No
Suitable for safety functions : No
Explosion safety gas : None
Explosion safety dust : None
Ambient temperature during operating (°C) : -25 °C to 80 °C
Degree of protection (IP) : IP00
Degree of protection (NEMA) : Other
