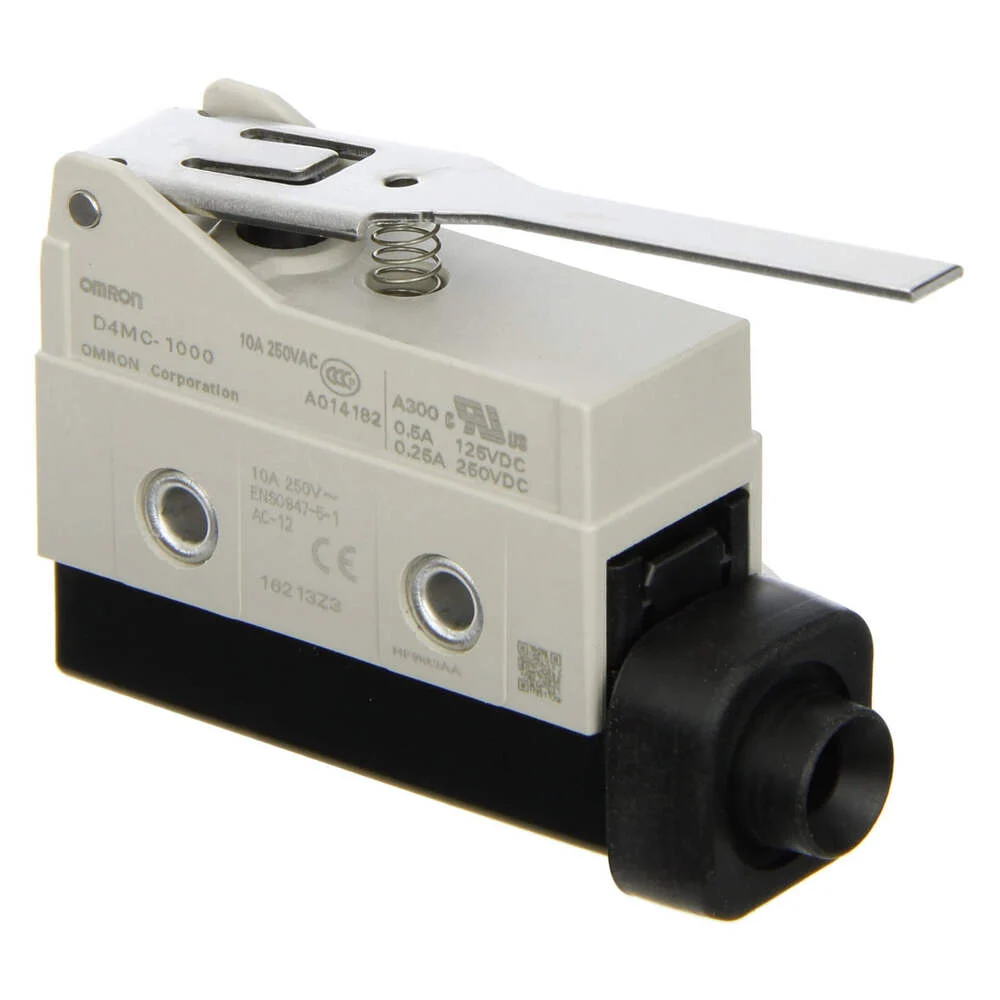

D4mc enclosed switch. High utility enclosed switch. Enclosed switches with built-in basic switches for high repeatability and durability of 10 million operations minimum. Panel mount versions have the same operating position as z basic switch. Suitable for applications demanding higher mechanical strength, dustproof and drip-proof properties than those on basic switches. Standards. Ul, csa, and ccc.
Specifications
Width sensor (mm) : 21.7
Diameter sensor (mm) : 6.4
Height of sensor (mm) : 47
Length of sensor (mm) : 70
Rated operation current Ie at AC-15, 125 V (A) : 10
Rated operation current Ie at AC-15, 230 V (A) : 10
Rated operation current Ie at DC-13, 24 V (A) : 6
Rated operation current Ie at DC-13, 125 V (A) : 0.5
Rated operation current Ie at DC-13, 230 V (A) : 0.25
Switching function : Other
Output electronic : No
Forced opening : Yes
Number of safety auxiliary contacts : 0
Number of contacts as normally closed contact : 0
Number of contacts as normally open contact : 0
Number of contacts as change-over contact : 1
Type of interface : None
Type of interface for safety communication : None
Construction type housing : Cuboid
Material : Metal
Coating housing : Other
Type of control element : Other
Alignment of the control element : Other
Electrical connection : Cable entry metrical
Status indication : No
Suitable for safety functions : No
Explosion safety gas : None
Explosion safety dust : None
Ambient temperature during operating (°C) : -10 °C to 80 °C
Degree of protection (IP) : IP67
Degree of protection (NEMA) : Other
