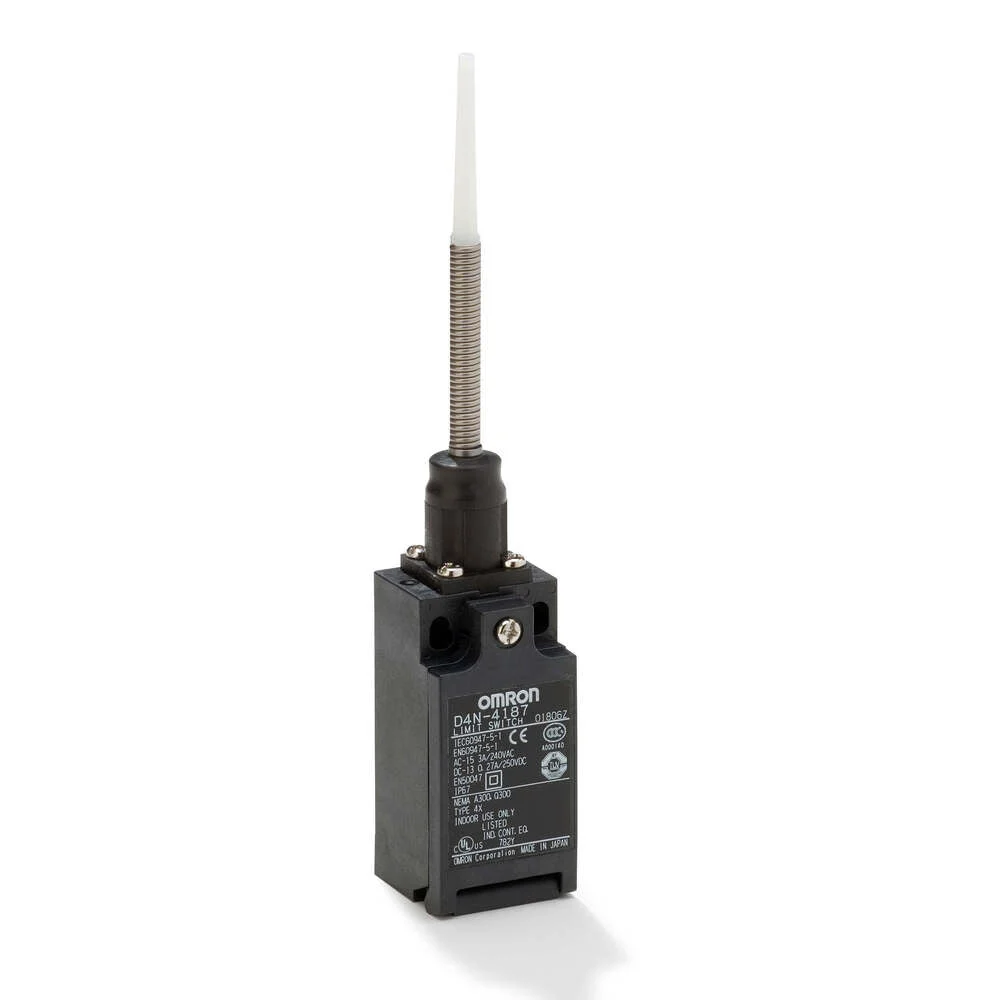

D4n series, miniature safety limit switch. The d4n series from omron is a miniature safety limit switch with a plastic housing, two built-in contacts and a wide range of head and actuator types. Direct opening mechanism. Various actuators. Double insulation. Standardized gold clad contacts provide high contact reliability. Can be used with both standard loads and micro loads. Free of lead, cadmium, and hexavalent chrome, reducing the burden on the environment. Conforms to en115 and en81-1. Safety limit switch.
Specifications
Width sensor (mm) : 31
Diameter sensor (mm) : 16.6
Height of sensor (mm) : 170
Length of sensor (mm) : 30
Rated operation current Ie at AC-15, 125 V (A) : 6
Rated operation current Ie at AC-15, 230 V (A) : 3
Rated operation current Ie at DC-13, 125 V (A) : 0.55
Rated operation current Ie at DC-13, 230 V (A) : 0.27
Switching function : Quick-break switch
Switching function latching : No
Output electronic : No
Forced opening : No
Number of safety auxiliary contacts : 0
Number of contacts as normally closed contact : 1
Number of contacts as normally open contact : 1
Number of contacts as change-over contact : 0
Type of interface : None
Type of interface for safety communication : None
Construction type housing : Cuboid
Material : Plastic
Coating housing : Other
Type of control element : Spring-rod
Alignment of the control element : Other
Electrical connection : Cable entry metrical
Status indication : No
Suitable for safety functions : Yes
Explosion safety gas : None
Explosion safety dust : None
Ambient temperature during operating (°C) : -30 °C to 70 °C
Degree of protection (IP) : IP67
Degree of protection (NEMA) : Other
