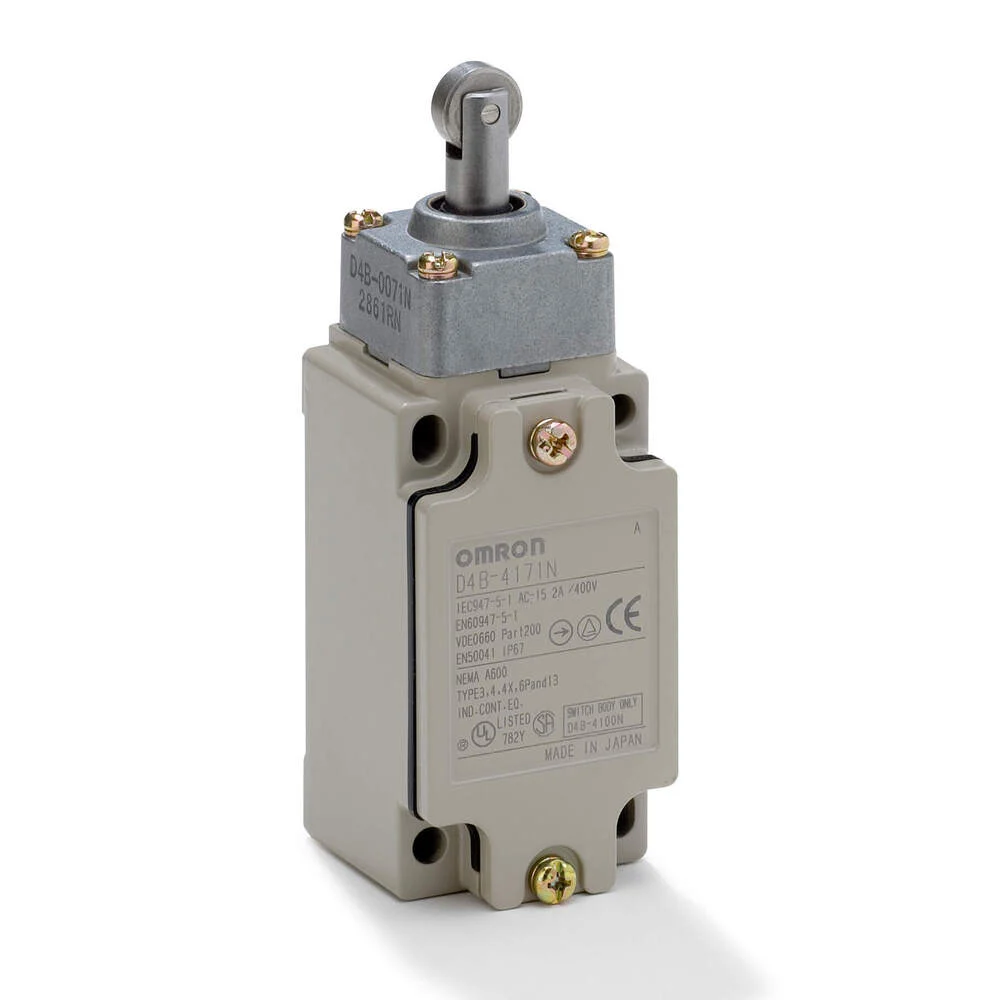

Omron SAFETY PRODUCTS D4B limit switch, (WxH) 40x77mm, control element design bump cam, housing metal, actuation body roller bump cam, degree of protection (IP) IP67, switching function torque switching, electrical connection design cable entry metric, 1 break contact.
Specifications
Width sensor (mm) : 40
Diameter sensor (mm) : 12.7
Height of sensor (mm) : 103
Length of sensor (mm) : 43
Rated operation current Ie at AC-15, 125 V (A) : 10
Rated operation current Ie at AC-15, 230 V (A) : 10
Rated operation current Ie at DC-13, 24 V (A) : 6
Rated operation current Ie at DC-13, 125 V (A) : 0.8
Rated operation current Ie at DC-13, 230 V (A) : 0.4
Switching function : Quick-break switch
Output electronic : No
Forced opening : Yes
Number of safety auxiliary contacts : 0
Number of contacts as normally closed contact : 1
Number of contacts as normally open contact : 1
Number of contacts as change-over contact : 0
Type of interface : None
Type of interface for safety communication : None
Construction type housing : Cuboid
Material : Metal
Coating housing : Other
Type of control element : Plunger
Alignment of the control element : Other
Electrical connection : Cable entry metrical
Status indication : No
Suitable for safety functions : Yes
Explosion safety gas : None
Explosion safety dust : None
Ambient temperature during operating (°C) : -40 °C to 80 °C
Degree of protection (IP) : IP67
Degree of protection (NEMA) : Other
