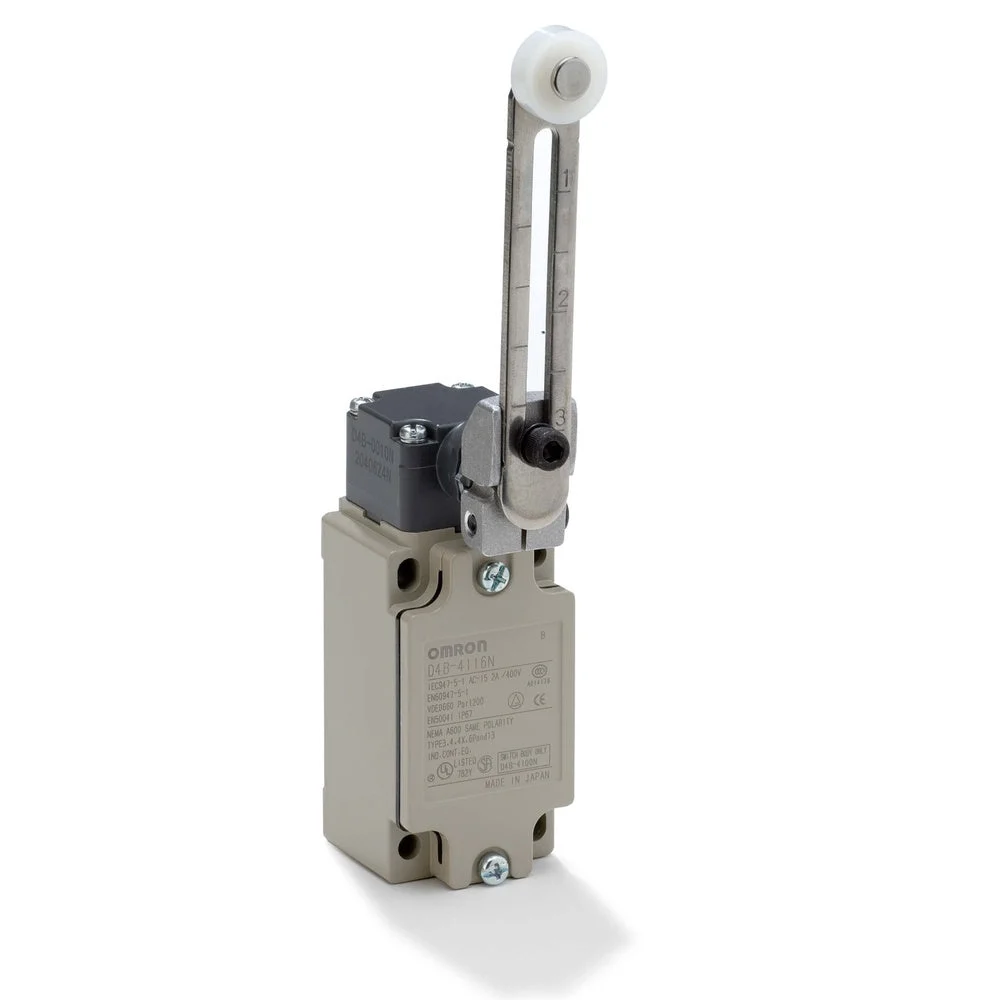

Omron SAFETY PRODUCTS D4B limit switch, (WxH) 40x77mm, actuator design roller lever adjustable, housing metal, actuator body roller lever adjustable, degree of protection (IP) IP67, switching function torque switching, electrical connection design cable entry metric.
Specifications
Width sensor (mm) : 40
Diameter sensor (mm) : 19
Height of sensor (mm) : 116
Length of sensor (mm) : 71
Rated operation current Ie at AC-15, 125 V (A) : 10
Rated operation current Ie at AC-15, 230 V (A) : 10
Rated operation current Ie at DC-13, 24 V (A) : 6
Rated operation current Ie at DC-13, 125 V (A) : 0.8
Rated operation current Ie at DC-13, 230 V (A) : 0.4
Switching function : Quick-break switch
Switching function latching : No
Output electronic : No
Forced opening : Yes
Number of safety auxiliary contacts : 0
Number of contacts as normally closed contact : 1
Number of contacts as normally open contact : 1
Number of contacts as change-over contact : 0
Type of interface : None
Type of interface for safety communication : None
Construction type housing : Cuboid
Material : Metal
Coating housing : Other
Type of control element : Adjustable roller lever
Alignment of the control element : Other
Electrical connection : Cable entry metrical
Status indication : No
Suitable for safety functions : No
Explosion safety gas : None
Explosion safety dust : None
Ambient temperature during operating (°C) : -40 °C to 80 °C
Degree of protection (IP) : IP67
Degree of protection (NEMA) : Other
