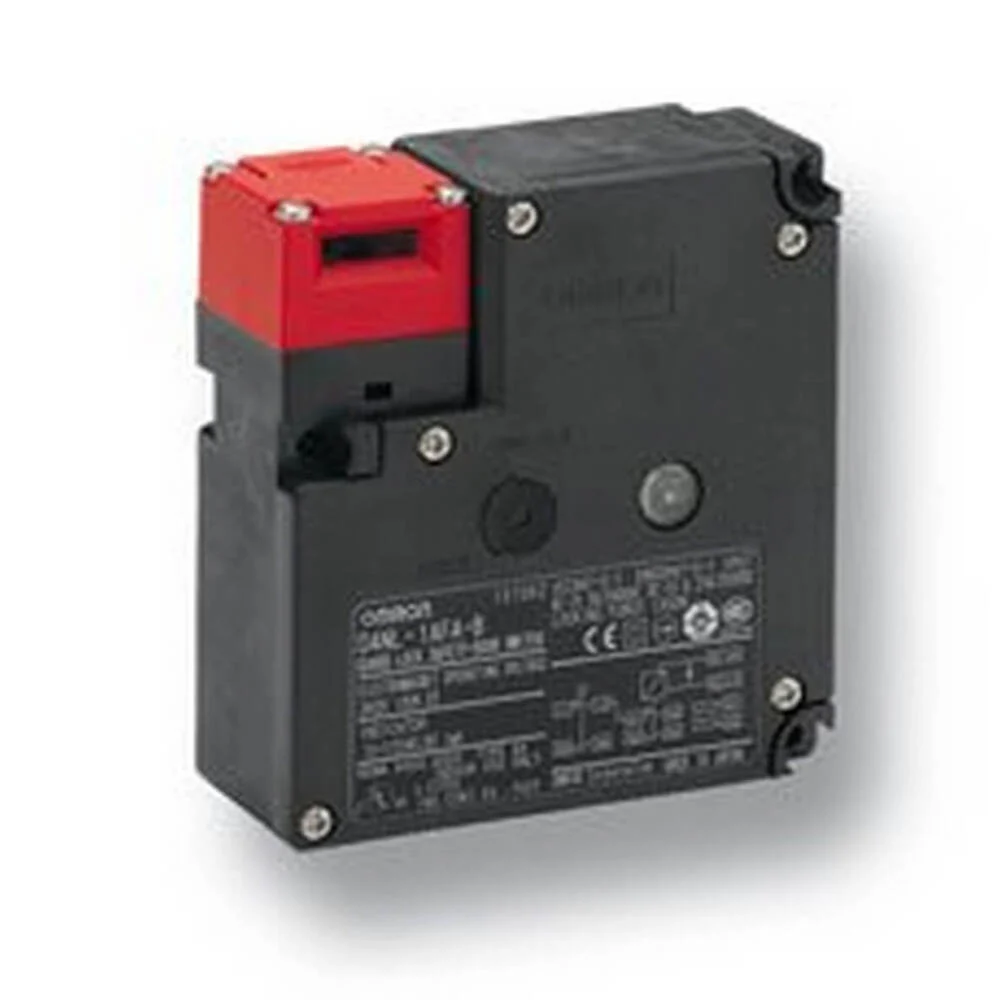

D4nl safety guard-lock door switch. A lead free, environmentally friendly solenoid interlock switch available with either a solenoid lock/mechanical release mechanism (power to lock) or a mechanical lock/solenoid release mechanism (power to unlock). sliding, hinged and removable guarding devices such as grids, hoods or doors can be monitored and locked in place with these safety guard lock switches. Safety door switch with either electromagnetic lock or unlock mechanism. Four head mounting directions possible. Four built-in contacts. Strong key holding force, 1300 n.
Specifications
Status indication : Yes
Suitable for safety functions : Yes
Guard locking force (N) : 1300
With escape release : Yes
Type of guard locking : Quiescent current principle
Rated control supply voltage Us magnet drive at AC 50 Hz (V) : 230 V to 230 V
Rated control supply voltage Us magnet drive at AC 60 Hz (V) : 230 V to 230 V
Rated control supply voltage Us magnet drive at DC (V) : 20.4 V to 26.4 V
Width sensor (mm) : 88.5
Height of sensor (mm) : 35.5
Length of sensor (mm) : 95
Number of safety auxiliary contacts : 0
Number of contacts as normally closed contact : 3
Number of contacts as normally open contact : 2
Number of contacts as change-over contact : 0
Type of switching contact : Slow-action switch
Rated operation current Ie at AC-15, 24 V (A) : 0
Rated operation current Ie at AC-15, 125 V (A) : 3
Rated operation current Ie at AC-15, 230 V (A) : 0
Rated operation current Ie at DC-13, 24 V (A) : 0
Rated operation current Ie at DC-13, 125 V (A) : 0.27
Rated operation current Ie at DC-13, 230 V (A) : 0
Construction type housing : Cuboid
Material : Other
Coating housing : Other
Type of interface : None
Type of interface for safety communication : None
Electrical connection : Cable entry metrical
Explosion safety gas : None
Explosion safety dust : None
Ambient temperature during operating (°C) : -10 °C to 55 °C
Degree of protection (IP) : IP67
Degree of protection (NEMA) : Other
