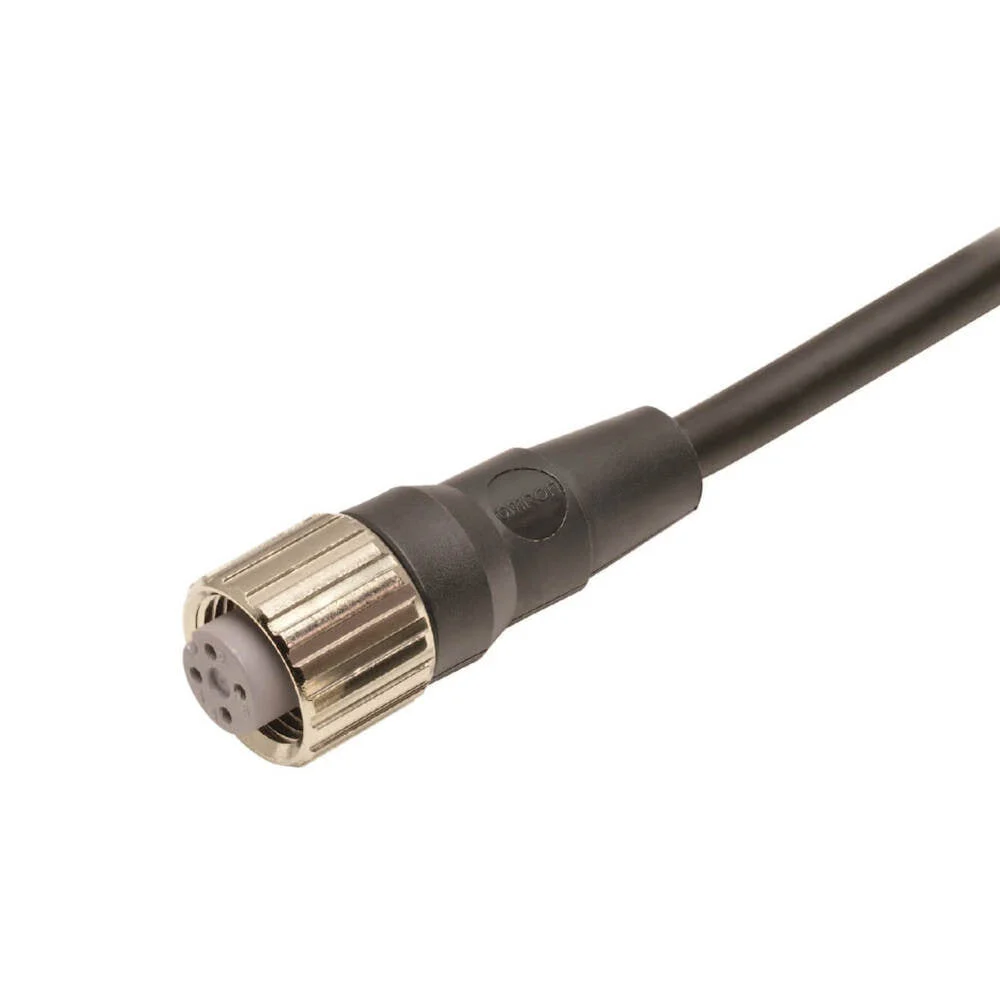

Omron PROXIMITY SensorS Sensor/Actor Cable With Connector – XS2FM12PVC4S5M.1

Omron PROXIMITY SENSORS ACCESSORIES PROXIMITY SENSOR sensor/actor cable with connector, cable entry position field side straight, cable entry position box side other, cable length 5m, cable jacket black, 4 poles, according to standard IEC 61076-2-101, cable jacket polyvinyl chloride (PVC), nom. (measuring) current In 4A.

Specifications

Number of poles : 4
Type of electrical connection, field-sided : M12
Type of plug-in contact, field sided : Female (bus)
Positioning cable feed, field-sided : Straight
Type of electrical connection, box-sided : Free conductor end
Positioning cable feed, box-sided : Other
Cable length (m) : 5
Material of cable sheath : Polyvinyl chloride (PVC)
Halogen free : No
Color cable sheath : Black
With LED indication : No
Screened : No
Cable type : Multi-core
Vulcanize : No
Material contact body : CuZn
Material of contact surface : Nickel/gold
Permitted cable outer temperature after assembling without vibration (°C) : -10 °C to 80 °C
Permitted cable outer temperature during assembling/handling (°C) : -10 °C to 80 °C
Rated current In (A) : 4
Rated voltage (V) : 125
Continuity resistor (mOhm) : 40
Degree of protection (IP) : IP67
