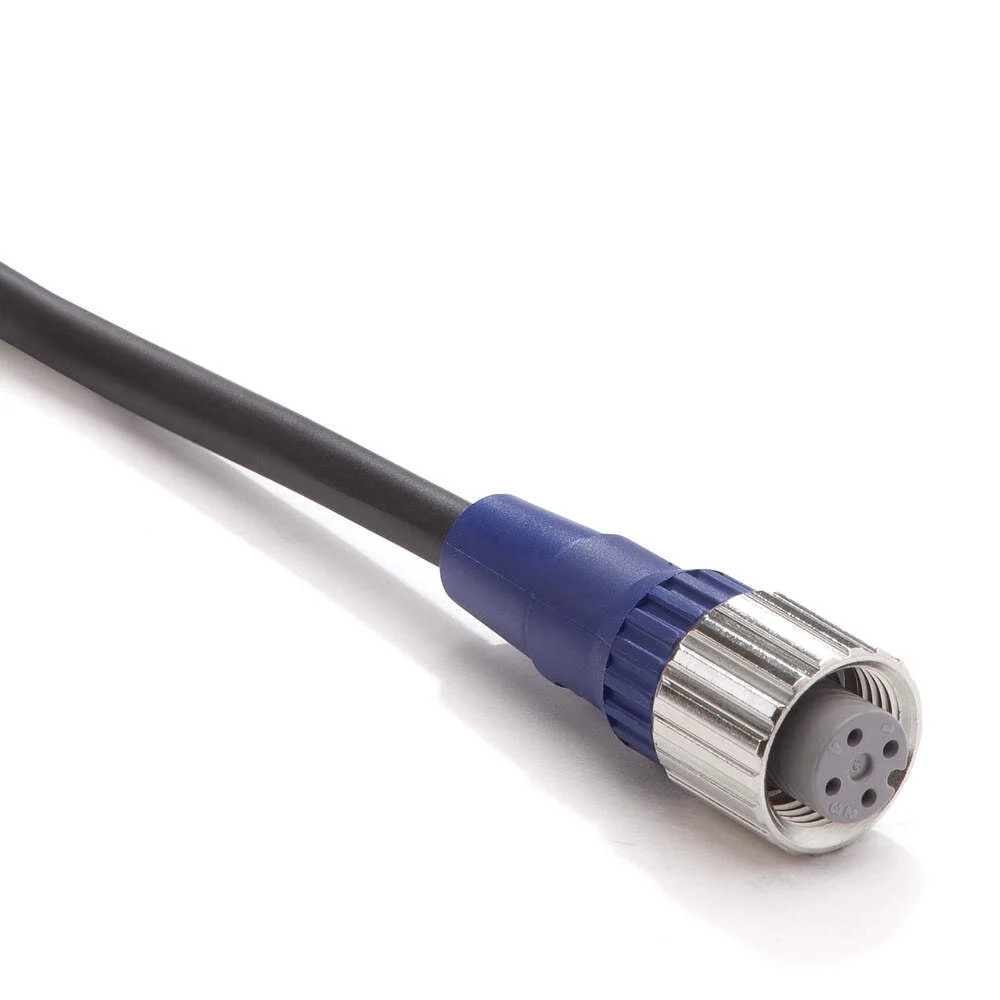

Omron PROXIMITY SensorS Sensor/Actor Cable With Connector – XS2FLM12PVC4S5M

Omron PROXIMITY SENSORS sensor/actor cable with connector, cable entry position field side straight, cable entry position box side straight, cable length 5m, cable jacket black, 4 poles, cable jacket polyvinyl chloride (PVC), nom. (measuring) current In 0.8A, cable type PVC cable. 4x 0.34mm².

Specifications

Number of poles : 4
Type of electrical connection, field-sided : M12
Type of plug-in contact, field sided : Female (bus)
Positioning cable feed, field-sided : Straight
Type of electrical connection, box-sided : Free conductor end
Type of plug-in contact, box-sided : Female (bus)
Positioning cable feed, box-sided : Straight
Cable length (m) : 5
Material of cable sheath : Polyvinyl chloride (PVC)
Halogen free : No
Color cable sheath : Black
With LED indication : No
Screened : No
Cable type : Multi-core
Vulcanize : No
Material contact body : CuZn
Material of contact surface : Nickel/gold
Permitted cable outer temperature after assembling without vibration (°C) : -25 °C to 70 °C
Permitted cable outer temperature during assembling/handling (°C) : -25 °C to 70 °C
Rated current In (A) : 0.8
Rated voltage (V) : 30
Continuity resistor (mOhm) : 250
Degree of protection (IP) : IP67
