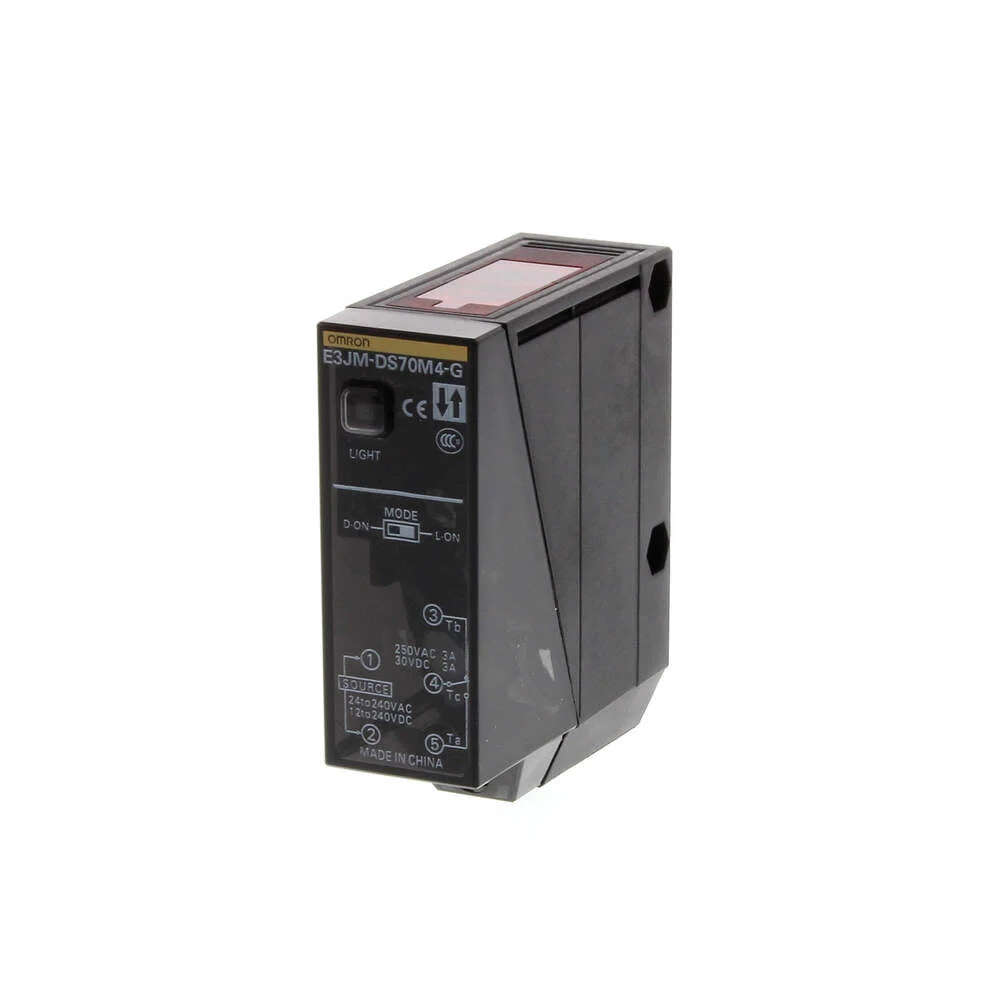

Omron PHOTO ELECTRIC SensorS Light Sensor Energetic – E3JMDS70M4GOMS

Omron PHOTO ELECTRIC SENSORS E3JM light sensor energetic, electrical connection design screw terminal, housing shape cube, 1 contact powered outlet, AWG number 22, operational safety class safety class 0, protection class (IP) IP66, protection rating (NEMA).

Specifications

Operating distance (mm) : 0 mm to 700 mm
Signal output : Relay contact
Electrical connection : Screw connection
Pre failure notice : No
Material : Plastic
With time function : No
Max. switching distance (mm) : 700
Max. output current (mA) : 3000
Rated control supply voltage Us at AC 50HZ (V) : 24 V to 240 V
Rated control supply voltage Us at AC 60HZ (V) : 24 V to 240 V
With reflector : No
Analogue output 0 V … 10 V : No
Rated control supply voltage Us at DC (V) : 12 V to 240 V
Analogue output 0 mA … 20 mA : No
Analogue output 4 mA … 20 mA : No
Analogue output -10 V … +10 V : No
With other analogue output : No
Setting procedure : Manual adjustment
With communication interface analogue : No
With communication interface AS-Interface : No
With communication interface CANOpen : No
With communication interface DeviceNet : No
With communication interface Ethernet : No
With communication interface INTERBUS : No
With communication interface PROFIBUS : No
With communication interface RS-232 : No
With communication interface RS-422 : No
With communication interface RS-485 : No
With communication interface SSD : No
With communication interface SSI : No
Degree of protection (IP) : IP66
Type of switch function : Change-over contact (NO/NC)
Operation agent-safety class : Safety class 0
Sensing mode : Light-/dark switching
Material of optical surface : Plastic
Response time (ms) : 30
Switching frequency (Hz) : 16
Type of safety according to IEC 61496-1 : 1
Laser protection class : None
Wavelength of the sensor (nm) : 950
Type of light : Infrared light
Light dot (mm²) : 100
AWG-number : 22
Material of cable sheath : Other
With restart blockage : No
Suitable for safety functions : No
Voltage-type : AC/DC
Ambient temperature (°C) : -25 °C to 55 °C
Degree of protection (NEMA) : Other
Height of sensor (mm) : 80
Length of sensor (mm) : 75
Width sensor (mm) : 25
