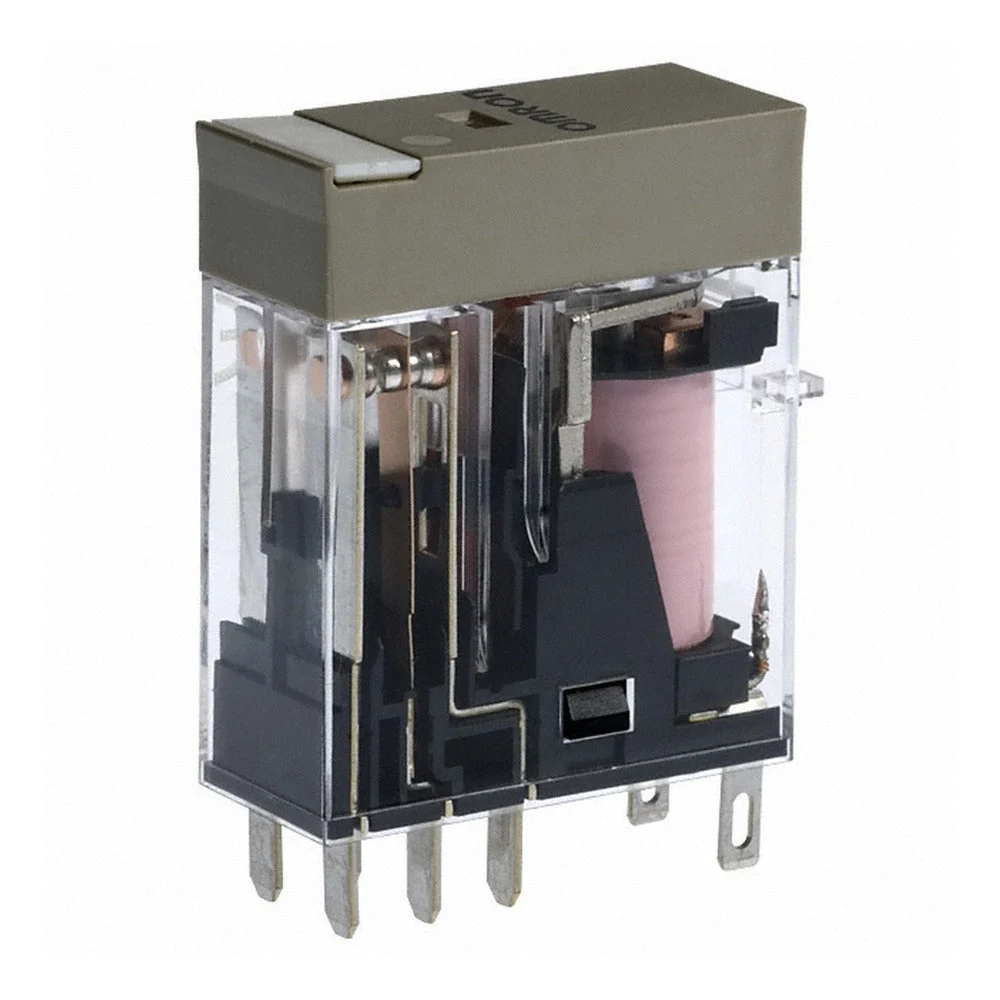

Omron INDUSTRIAL RELAYS G2R-S auxiliary relay, (WxDxH) 13x29x35.5mm, nominal coil voltage Us at AC 50Hz 21.6 – 26.4V, with plug base, nominal coil voltage Us at AC 60Hz 21.6 – 26.4V, with LED indication, 2 auxiliary contacts as makecon, 2 auxiliary contacts as changec, drive fin switching ratio monostable.
Specifications
Rated control supply voltage Us at AC 50HZ (V) : 21.6 V to 26.4 V
Rated control supply voltage Us at AC 60HZ (V) : 21.6 V to 26.4 V
Voltage type for actuating : AC
Rated operation current Ie, 400 V (A) : 5
Connection type auxiliary circuit : Flat plug-in connection
Mounting method : With plug-in socket
Number of auxiliary contacts as normally closed contact : 2
Number of auxiliary contacts as normally open contact : 2
Number of auxiliary contacts as change-over contact : 2
With LED indication : Yes
