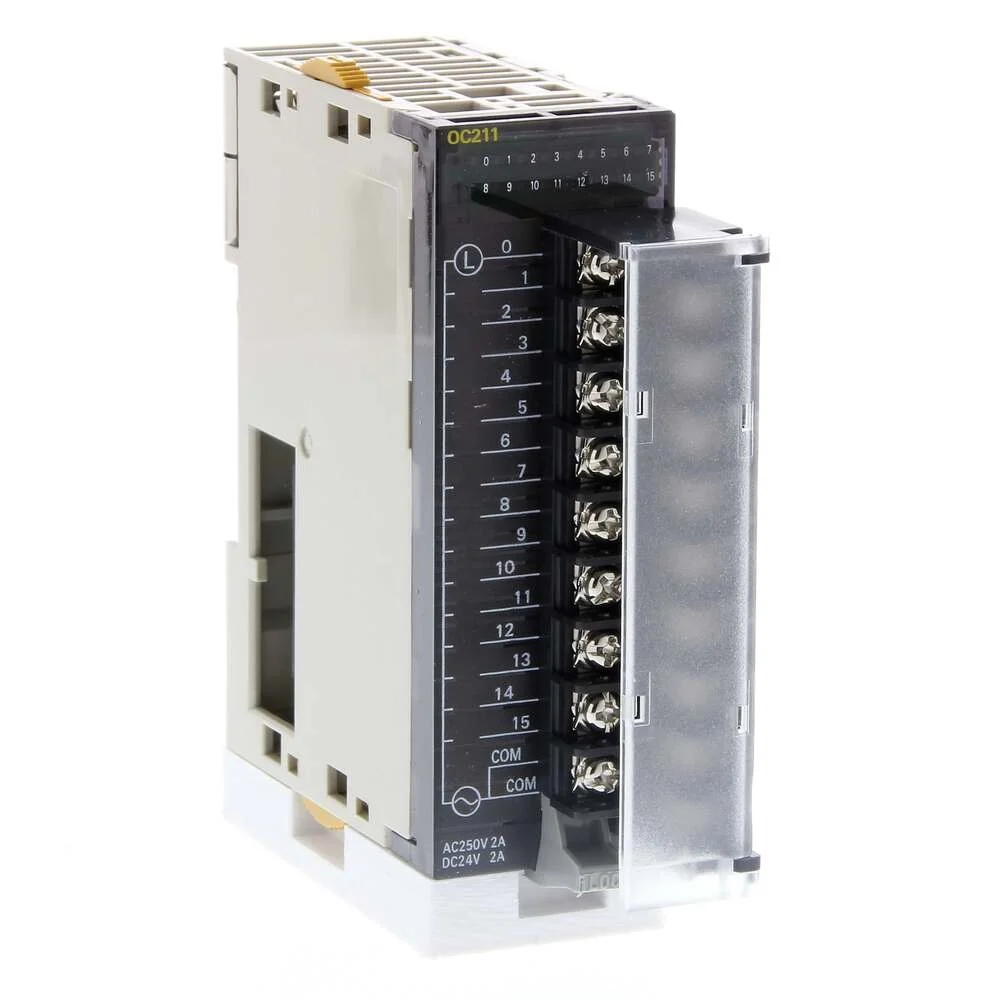

Omron Control SystemS PLC Digital Input And Output Module – CJ1WOC211

Omron CONTROL SYSTEMS CJ1 PLC digital input and output module, (WxDxH) 31x89x90mm, digital output type relay, voltage type supply voltage DC, 16 digital outputs, electrical connection type screw terminal, category according to EN 954-1 B, configurable digital outputs.

Specifications

Supply voltage AC 50 Hz (V) : 230 V to 250 V
Supply voltage AC 60 Hz (V) : 230 V to 250 V
Supply voltage DC (V) : 12 V to 24 V
Voltage type of supply voltage : DC
Number of digital inputs : 0
Number of digital outputs : 16
Digital inputs configurable : No
Digital outputs configurable : Yes
Type of voltage (input voltage) : DC
Type of digital output : Relay
Output current (A) : 2
Permitted voltage at output (V) : 5 V to 250 V
Type of output voltage : AC/DC
Short-circuit protection, outputs available : No
Redundancy : No
Electrical connection : Screw connection
Suitable for safety functions : No
SIL (IEC 61508) : None
Performance level (EN ISO 13849-1) : Level a
Appendant operation agent (Ex ia) : No
Appendant operation agent (Ex ib) : No
Explosion safety gas : None
Explosion safety dust : None
Width (mm) : 31
Height (mm) : 90
Depth (mm) : 89
