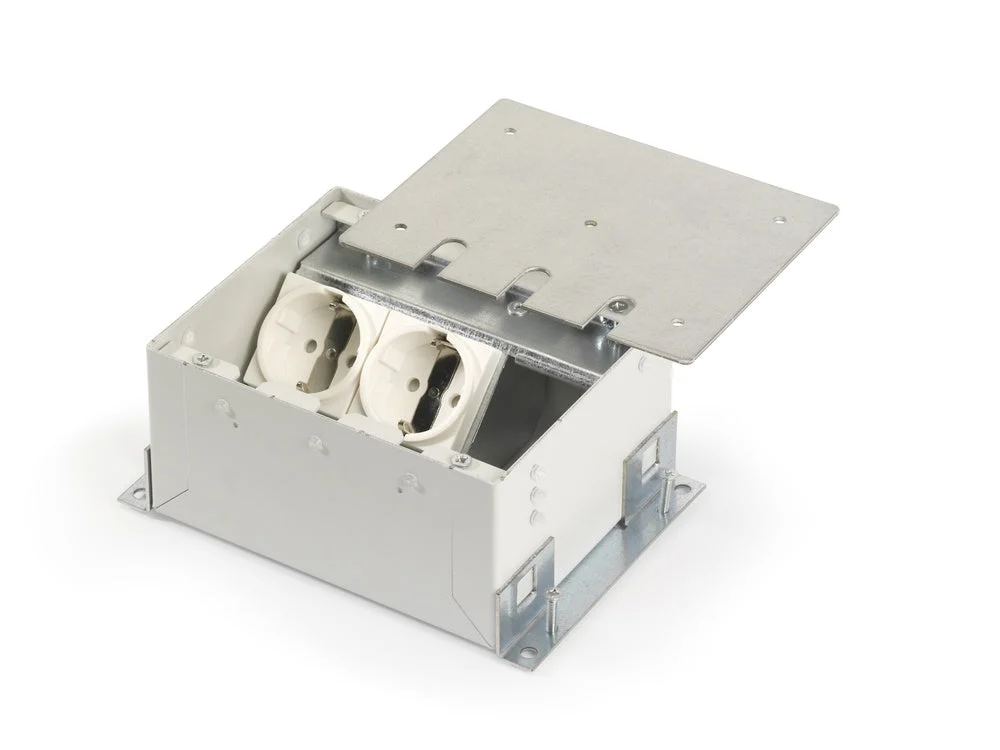

This Velox Mini pour-in floor box features two 230V outlets and one empty module. You can fill in this empty module with a data, USB 2.0, USB 3.0 or HMDI connection, for example. In addition, it is also possible to fill the module with a CAI, VGA/a, XLR or Display Ponan. This OCS Velox Mini floor socket has a standard Sendzimir cover, suitable for parquet or natural stone floor finishes. The Velox Mini floor pot’s 3 cable passages allow you to easily route descending wiring through the lid. There are 4 adjustment screws in the corners of the interior.
Specifications
Cover model : Rectangular
Number of inlets : 2
Number of device cups : 2
Number of socket outlets with protective contact (SCHUKO) : 2
Number of UK BS1363 sockets : 0
With cable outlet in cover : Yes
Material : Steel
Surface protection housing : Galvanized
Material cover lid : Steel
Surface protection cover lid : Anodised
Surface treatment cover lid : Untreated
Degree of protection (IP) : IP20
With opening carpeting : Yes
Depth of flooring recess (mm) : 0
Protective frame carpeting : No
Color : Other
Suitable for indoor installation : Yes
Suitable for outdoor installation : No
Suitable for sub-floor duct : No
Suitable for hollow floor : No
Suitable for double floor built-in : No
Suitable for concrete installation : Yes
Suitable for floors in computer rooms : No
Suitable for wet cleaning : No
Width outside dimension (mm) : 125
Length external dimension (mm) : 150
Length built-in dimension (mm) : 180
Width built-in dimension (mm) : 125
Min. built-in depth (mm) : 75
