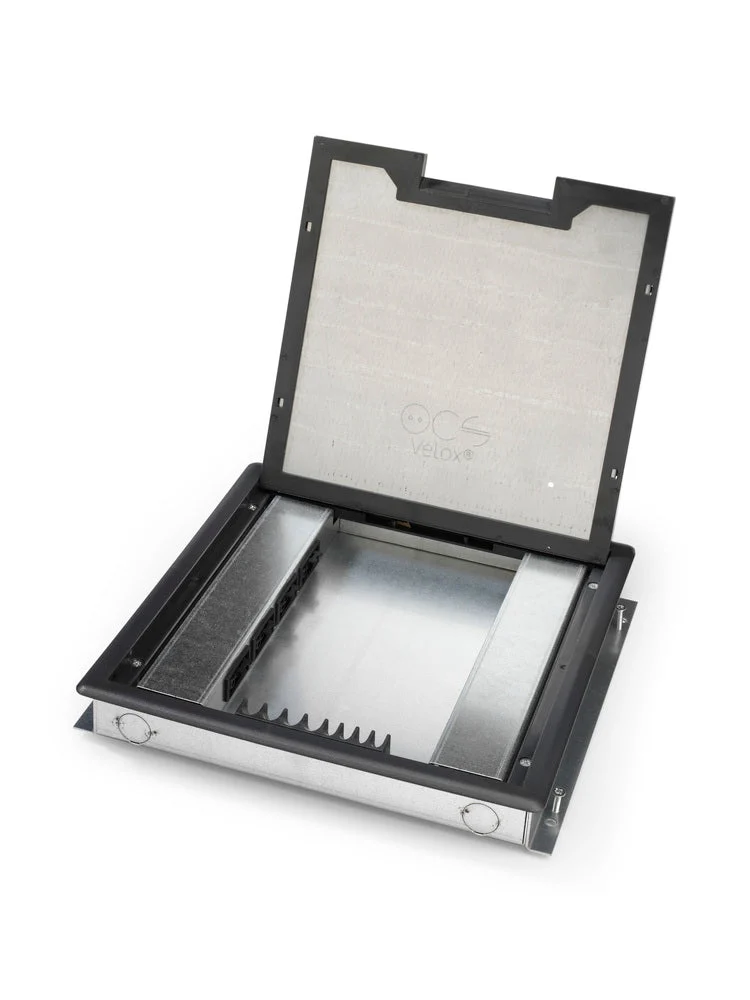

OCS Velox 2.0 Floor Outlet Box – 33.70.004

The VELOX 2.0 slump box is delivered complete in a single box. That means no errors or missing parts, you can get started right away! The Velox 2.0 floor box has a square dimension of 251 x 251 mm, allowing the cover to be placed in 4 directions. This way you can always place the cable outlet in the right direction in relation to, for example, your desk. This variant of the Velox floor boxes has a plastic lid with a 3mm steel stud, suitable for the application of 3-4mm carpet or marmoleum.

Specifications

Cover model : Square
Number of inlets : 16
Number of device cups : 4
Number of socket outlets with protective contact (SCHUKO) : 0
Number of UK BS1363 sockets : 0
With cable outlet in cover : Yes
Material : Steel
Surface protection housing : Galvanized
Material cover lid : Plastic
Surface protection cover lid : Untreated
Surface treatment cover lid : Other
Degree of protection (IP) : IP20
With opening carpeting : Yes
Depth of flooring recess (mm) : 3
Protective frame carpeting : Yes
Color : Grey
RAL-number : 7024
Suitable for indoor installation : Yes
Suitable for outdoor installation : No
Suitable for sub-floor duct : No
Suitable for hollow floor : No
Suitable for double floor built-in : No
Suitable for concrete installation : Yes
Suitable for floors in computer rooms : No
Suitable for wet cleaning : No
Width outside dimension (mm) : 270
Length external dimension (mm) : 270
Length built-in dimension (mm) : 282
Width built-in dimension (mm) : 252
Min. built-in depth (mm) : 33.5
