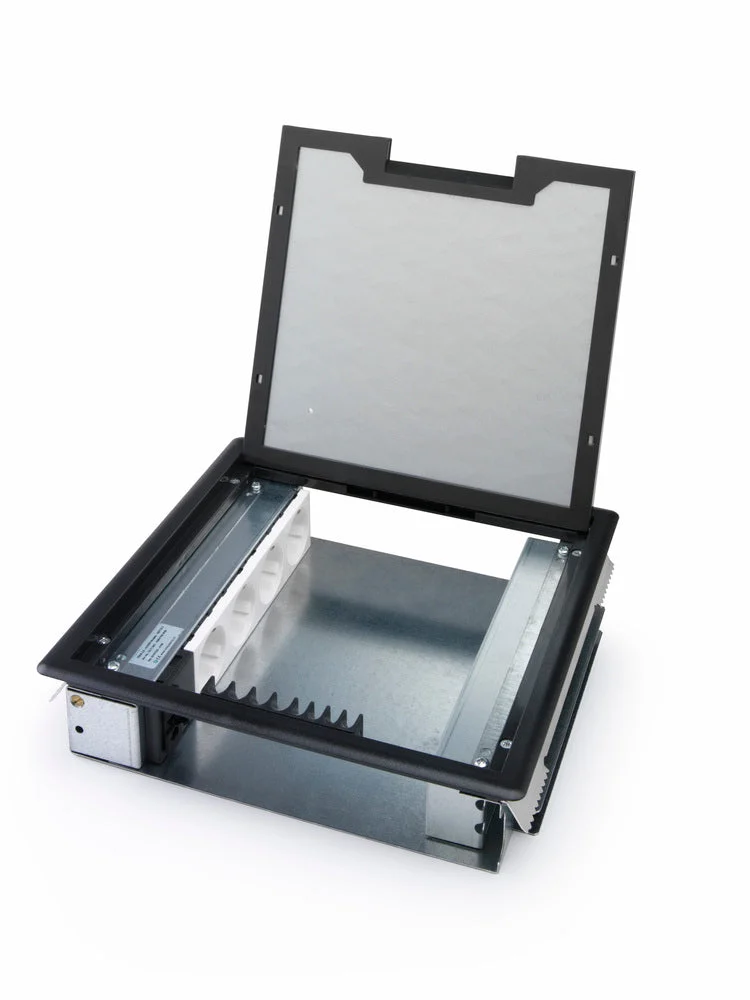

This Tetra 2.0 hollow space floor box features four 230V outlets and a mounted data panel with room for eight connections. A large recess is provided for entering data cabling so that the data cables are inserted right behind the connector. You can easily connect cat6, cat6A and even cat7 cabling without having to twist the cables into weird bends. This OCS Tetra 2.0 floor socket has a plastic cover, suitable for a carpet or marmoleum floor.
Specifications
Cover model : Square
Number of inlets : 14
Number of device cups : 4
Number of socket outlets with protective contact (SCHUKO) : 4
Number of UK BS1363 sockets : 0
With cable outlet in cover : Yes
Material : Steel
Surface protection housing : Galvanized
Material cover lid : Plastic
Surface protection cover lid : Other
Surface treatment cover lid : Untreated
Degree of protection (IP) : IP20
With opening carpeting : Yes
Depth of flooring recess (mm) : 3
Protective frame carpeting : Yes
Color : Grey
RAL-number : 7024
Suitable for indoor installation : Yes
Suitable for outdoor installation : No
Suitable for sub-floor duct : No
Suitable for hollow floor : Yes
Suitable for double floor built-in : Yes
Suitable for concrete installation : No
Suitable for floors in computer rooms : Yes
Suitable for wet cleaning : No
Width outside dimension (mm) : 270
Length external dimension (mm) : 270
Length built-in dimension (mm) : 248
Width built-in dimension (mm) : 248
Min. built-in depth (mm) : 65.6
