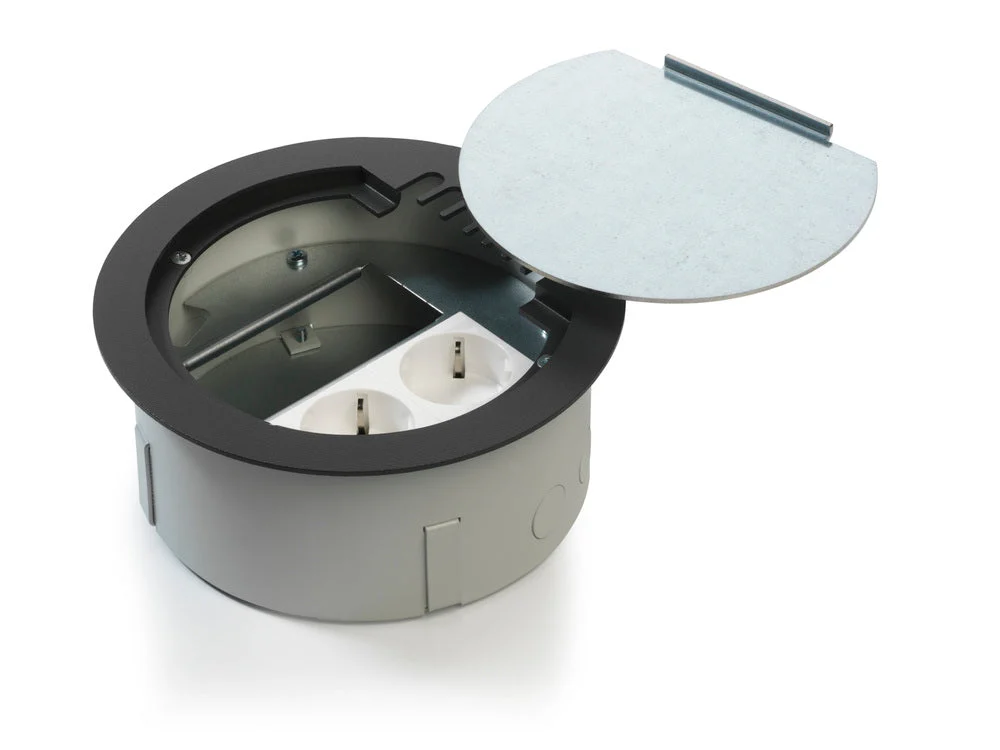

The Rondo 2.0 floor box has friendly round shape with a recessed depth of 75mm. This OCS pour-in floor box features two 230V outlets and 2 empty cutouts. A host of individual components are available to fill the 4 empty modules opposite the sockets. Cable entries are provided at the bottom (4xØ20) and in the side walls (2×2 Ø20) of the floor socket. The lid in clear sendzimir with powder coating has a carpet edge, this allows the lid to be fitted with a piece of carpet, laminate or marmoleum. This is how you create floor sockets with the Rondo 2.0 .
Specifications
Cover model : Round
Number of inlets : 8
Number of device cups : 2
Number of socket outlets with protective contact (SCHUKO) : 2
Number of UK BS1363 sockets : 0
With cable outlet in cover : Yes
Material : Steel
Surface protection housing : Galvanized
Material cover lid : Steel
Surface protection cover lid : Galvanized
Surface treatment cover lid : Untreated
Degree of protection (IP) : IP20
With opening carpeting : Yes
Depth of flooring recess (mm) : 5
Protective frame carpeting : No
Color : Grey
RAL-number : 7024
Suitable for indoor installation : Yes
Suitable for outdoor installation : No
Suitable for sub-floor duct : No
Suitable for hollow floor : No
Suitable for double floor built-in : No
Suitable for concrete installation : Yes
Suitable for floors in computer rooms : No
Suitable for wet cleaning : No
Outer-diameter (mm) : 183
Length built-in dimension (mm) : 16
Width built-in dimension (mm) : 160
Built-in diameter (mm) : 163.4
Min. built-in depth (mm) : 82
