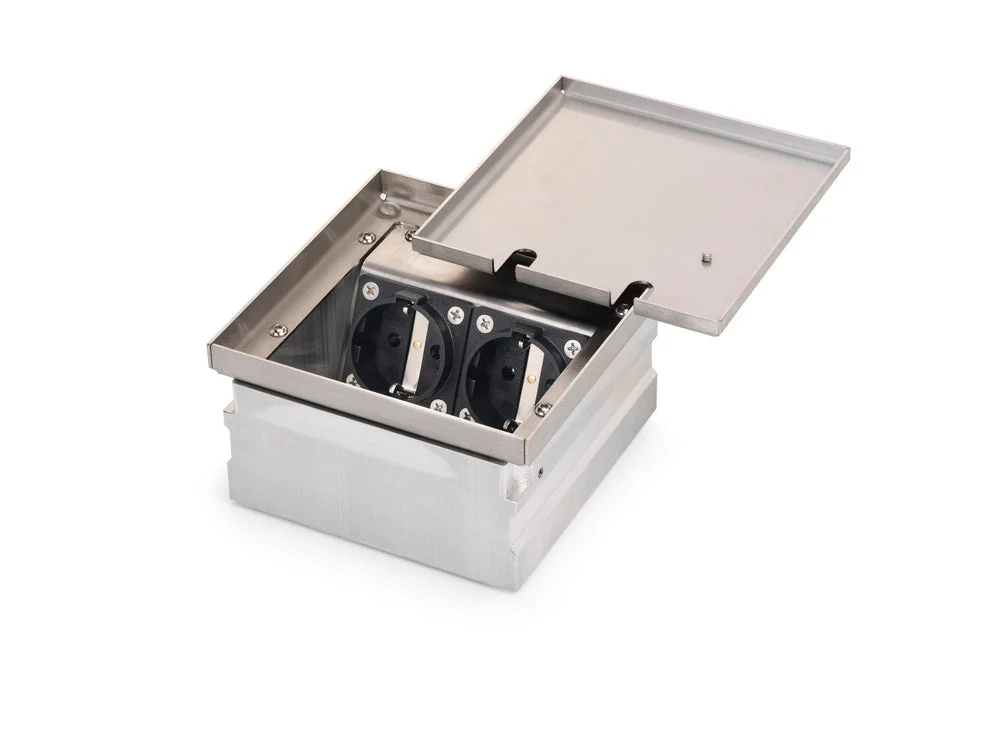

This 8802 slump floor box features two 230V outlets and a cover for the purpose of a screed. This type of cover of the OCS 8802 floor socket. This type of cover is suitable when the floor is finished with carpet or linoleum. In fact, the cover can be carpeted or poured and only the frame remains visible in the floor. In addition, the floor box has 2 pipe entries of Ø 20 mm in the side wall behind the sockets. The cover can be connected after fitting standard straight or right-angle grounding plugs.
Specifications
Cover model : Square
Number of inlets : 2
Number of device cups : 2
Number of socket outlets with protective contact (SCHUKO) : 2
Number of UK BS1363 sockets : 0
With cable outlet in cover : Yes
Material : Aluminum
Surface protection housing : Anodised
Material cover lid : Stainless steel
Surface protection cover lid : Anodised
Surface treatment cover lid : Untreated
Degree of protection (IP) : IP20
With opening carpeting : Yes
Depth of flooring recess (mm) : 5
Protective frame carpeting : Yes
Color : Other
Suitable for indoor installation : Yes
Suitable for outdoor installation : No
Suitable for sub-floor duct : No
Suitable for hollow floor : No
Suitable for double floor built-in : No
Suitable for concrete installation : Yes
Suitable for floors in computer rooms : No
Suitable for wet cleaning : No
Width outside dimension (mm) : 135
Length external dimension (mm) : 135
Length built-in dimension (mm) : 135
Width built-in dimension (mm) : 135
Min. built-in depth (mm) : 74.5
