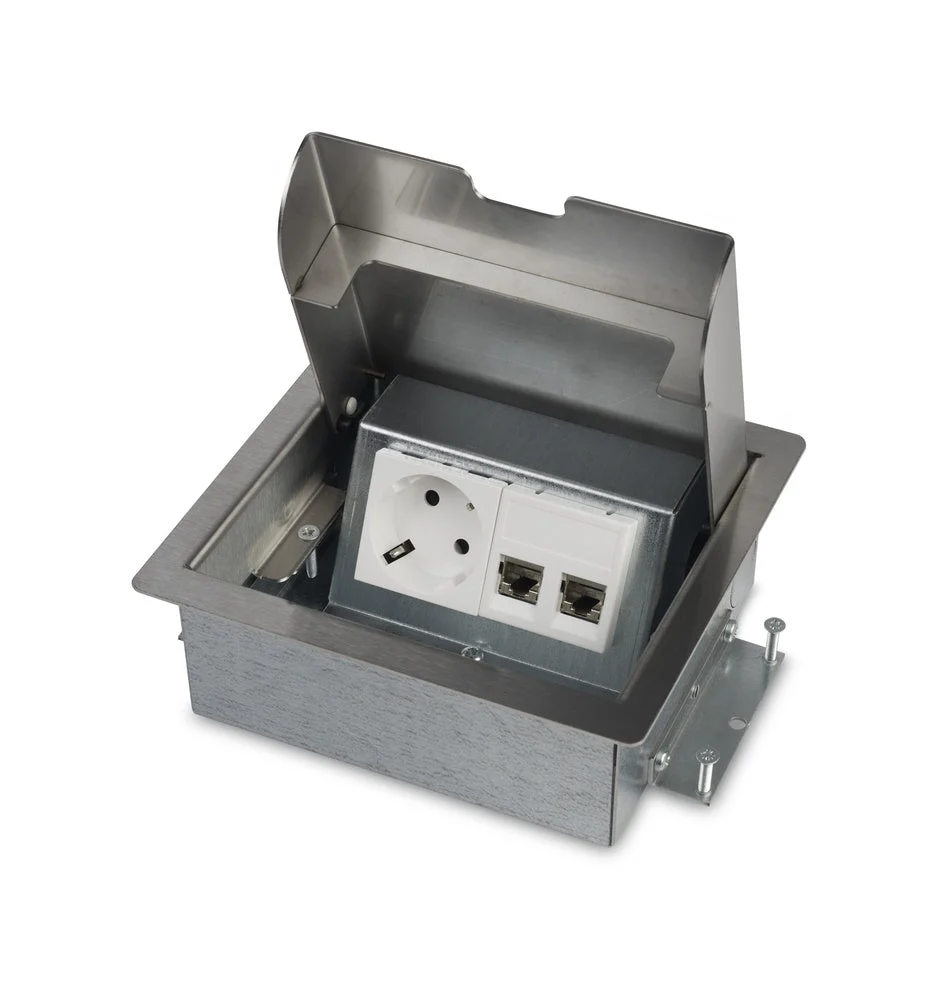

This Servicebox 3.0 floor socket from OCS features one 230V outlet and two cat6a UTP connections. With its expanded housing, the Servicebox 3.0 offers more connection space behind the wall outlet for quick installation. Favorable tilt of the socket frame allows a plug to be easily inserted into the socket. The casing of the slump floor box has generous 25mm rear and side pipe entries. Ideal for interconnecting. The flat stainless steel lid fits effortlessly into any interior. The height of the stainless steel lid is adjustable from 1.5mm to 15mm.
Specifications
Cover model : Rectangular
Number of inlets : 2
Number of device cups : 2
Number of socket outlets with protective contact (SCHUKO) : 1
Number of UK BS1363 sockets : 0
With cable outlet in cover : Yes
Material : Steel
Surface protection housing : Galvanized
Material cover lid : Stainless steel
Surface treatment cover lid : Brushed
Degree of protection (IP) : IP20
With opening carpeting : No
Depth of flooring recess (mm) : 0
Protective frame carpeting : Yes
Color : Other
Suitable for indoor installation : Yes
Suitable for outdoor installation : No
Suitable for sub-floor duct : No
Suitable for hollow floor : Yes
Suitable for double floor built-in : Yes
Suitable for concrete installation : Yes
Suitable for floors in computer rooms : Yes
Suitable for wet cleaning : No
Width outside dimension (mm) : 155
Length external dimension (mm) : 169
Length built-in dimension (mm) : 147
Width built-in dimension (mm) : 133
Min. built-in depth (mm) : 60
