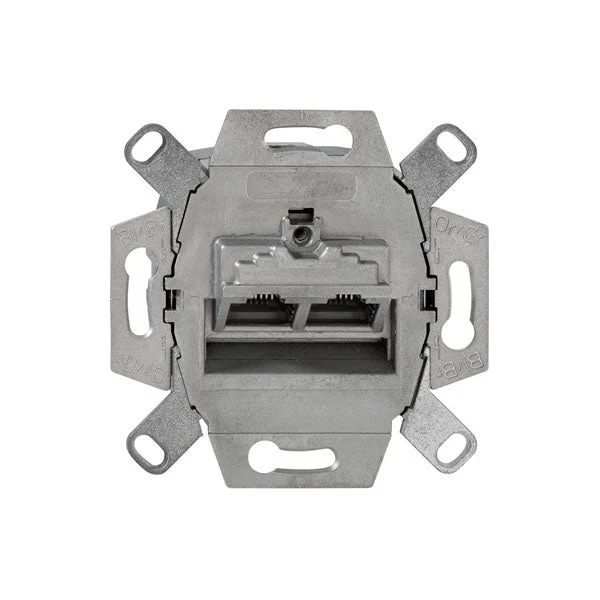

Ocs data junction box twisted pair, gray, category 6, connector type 2xRJ45-8P8C, wall-mounted, protection type (IP) IP20, connection type LSA, suitable for number of connectors 2, shielded housing, buses shielded, design capable, flush mounting (plaster), connectors included, coding.
Specifications
Surface mounting : No
Flush-mounted installation : Yes
Duct installation : Yes
Floor box/sub-floor mounted : No
Type of fastening : Screwing
Assembly arrangement : Basic element
Type of connector : 2x RJ45 8(8)
With buses/couplings : Yes
Suitable for number of connectors : 2
Category : 6
Color : Grey
RAL-number : 0
Connection type : LSA
Shielded buses : Yes
Shielded housing : Yes
Separate earthing connection : Yes
With label space : No
Design suitable : Yes
Separate strain relief : Yes
Mounting method shielding connection : Screw
Outlet direction : Inclined
With dust cover : No
With terminal resistor : No
Degree of protection (IP) : IP20
Mechanical coding : No
Color coding : Yes
Width of device (mm) : 70.4
Height of device (mm) : 70.4
Depth of device (mm) : 45
