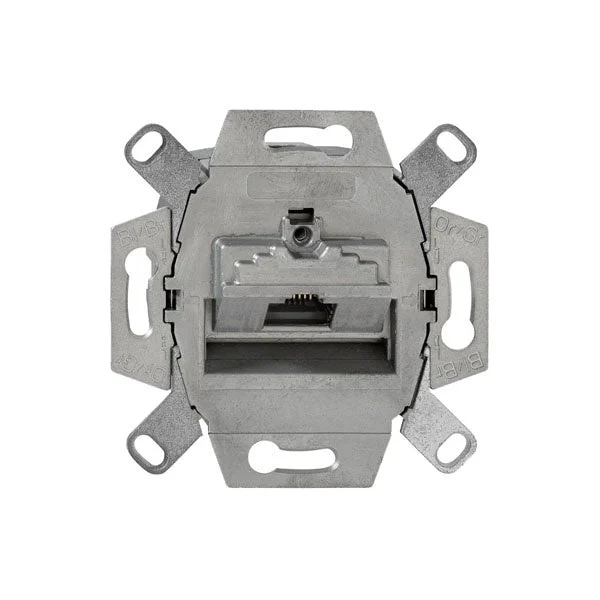

OCS Data Socket Twisted Pair – 138104030

Ocs data junction box twisted pair, gray, category 6, connector type RJ45 8(8), wall outlet installation, protection type (IP) IP20, connection type LSA, suitable for number of connectors 1, shielded housing, sockets shielded, design capable, flush mounting (stucco), connectors included, encoding.

Specifications

Surface mounting : No
Flush-mounted installation : Yes
Duct installation : Yes
Floor box/sub-floor mounted : No
Type of fastening : Screwing
Assembly arrangement : Basic element
Type of connector : RJ45 8(8)
With buses/couplings : Yes
Suitable for number of connectors : 1
Category : 6
Color : Grey
RAL-number : 0
Connection type : LSA
Shielded buses : Yes
Shielded housing : Yes
Separate earthing connection : Yes
With label space : No
Design suitable : Yes
Separate strain relief : Yes
Mounting method shielding connection : Screw
Outlet direction : Inclined
With dust cover : No
With terminal resistor : No
Degree of protection (IP) : IP20
Mechanical coding : No
Color coding : Yes
Width of device (mm) : 70.4
Height of device (mm) : 70.4
Depth of device (mm) : 45
