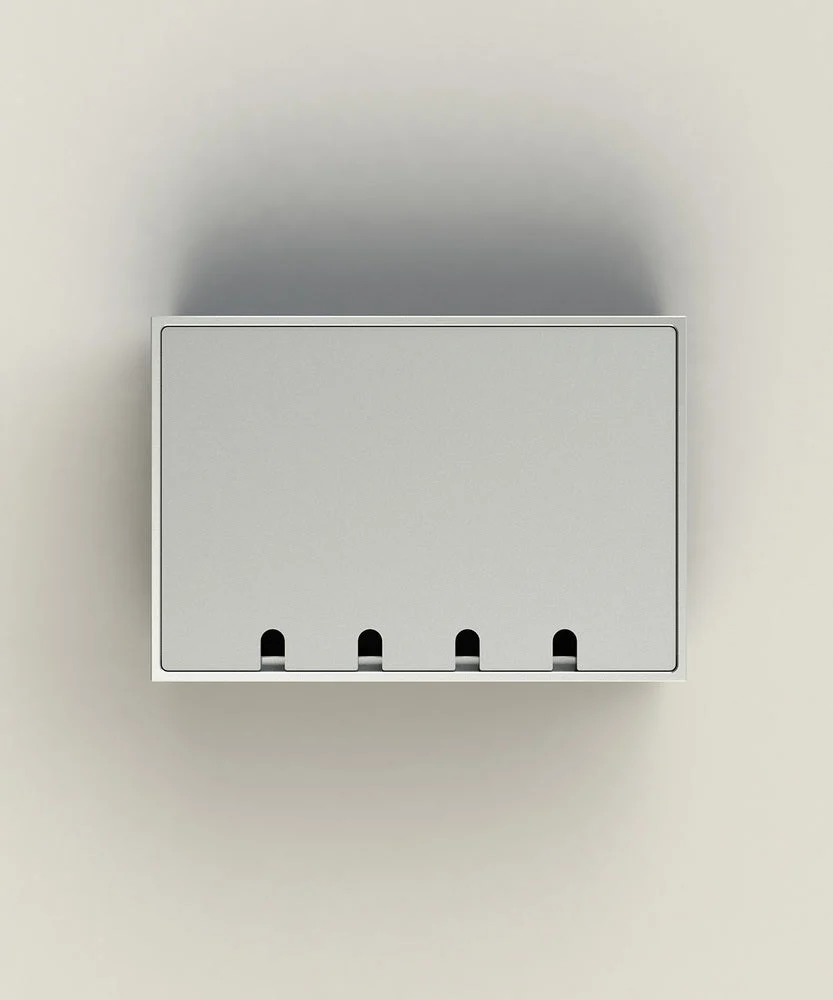

This 8804 drop-in floor box features two 230V outlets, two RJ45 connections and 1 CAI connection. The lid of the OCS 8804 floor socket can be covered with your own material floor finishes, including parquet or natural stone. A striking feature of this cover is that the floor box does not show any visible seams of the housing, making the floor box a harmonious whole with the floor. In addition, the floor box features 4 Ø25 mm pipe entries in the side wall behind the sockets, data and CAI connections.
Specifications
Cover model : Rectangular
Number of inlets : 4
Number of device cups : 2
Number of socket outlets with protective contact (SCHUKO) : 2
Number of UK BS1363 sockets : 0
With cable outlet in cover : Yes
Material : Aluminum
Surface protection housing : Anodised
Material cover lid : Steel
Surface protection cover lid : Galvanized
Surface treatment cover lid : Untreated
Degree of protection (IP) : IP20
With opening carpeting : No
Depth of flooring recess (mm) : 0
Protective frame carpeting : No
Color : Other
Suitable for indoor installation : Yes
Suitable for outdoor installation : No
Suitable for sub-floor duct : No
Suitable for hollow floor : No
Suitable for double floor built-in : No
Suitable for concrete installation : Yes
Suitable for floors in computer rooms : No
Suitable for wet cleaning : No
Width outside dimension (mm) : 150
Length external dimension (mm) : 220
Length built-in dimension (mm) : 220
Width built-in dimension (mm) : 150
Min. built-in depth (mm) : 71.5
