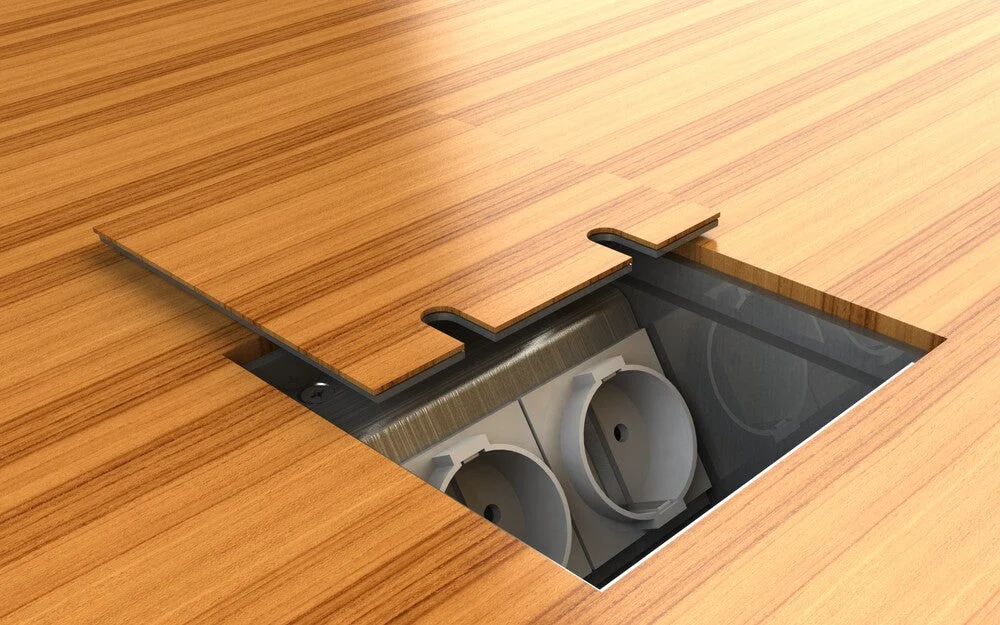

This 8802 pour-in floor box features two 230V outlets and a cover for the purpose of parquet and (natural) stone. This type of cover for the OCS 8802 floor socket can be covered with your own material floor finishes, including parquet or natural stone. A striking feature of this cover is that the floor box shows no visible seams of the casing, making the floor box a harmonious whole with the floor. In addition, the floor box has 2 Ø 20 mm pipe entries in the side wall behind the sockets.
Specifications
Cover model : Square
Number of inlets : 2
Number of device cups : 2
Number of socket outlets with protective contact (SCHUKO) : 2
Number of UK BS1363 sockets : 0
With cable outlet in cover : Yes
Material : Aluminum
Surface protection housing : Anodised
Material cover lid : Aluminum
Surface protection cover lid : Anodised
Surface treatment cover lid : Other
Degree of protection (IP) : IP20
With opening carpeting : No
Depth of flooring recess (mm) : 0
Protective frame carpeting : No
Color : Other
Suitable for indoor installation : Yes
Suitable for outdoor installation : No
Suitable for sub-floor duct : No
Suitable for hollow floor : No
Suitable for double floor built-in : No
Suitable for concrete installation : Yes
Suitable for floors in computer rooms : No
Suitable for wet cleaning : No
Width outside dimension (mm) : 125
Length external dimension (mm) : 125
Length built-in dimension (mm) : 125
Width built-in dimension (mm) : 125
Min. built-in depth (mm) : 68.5
