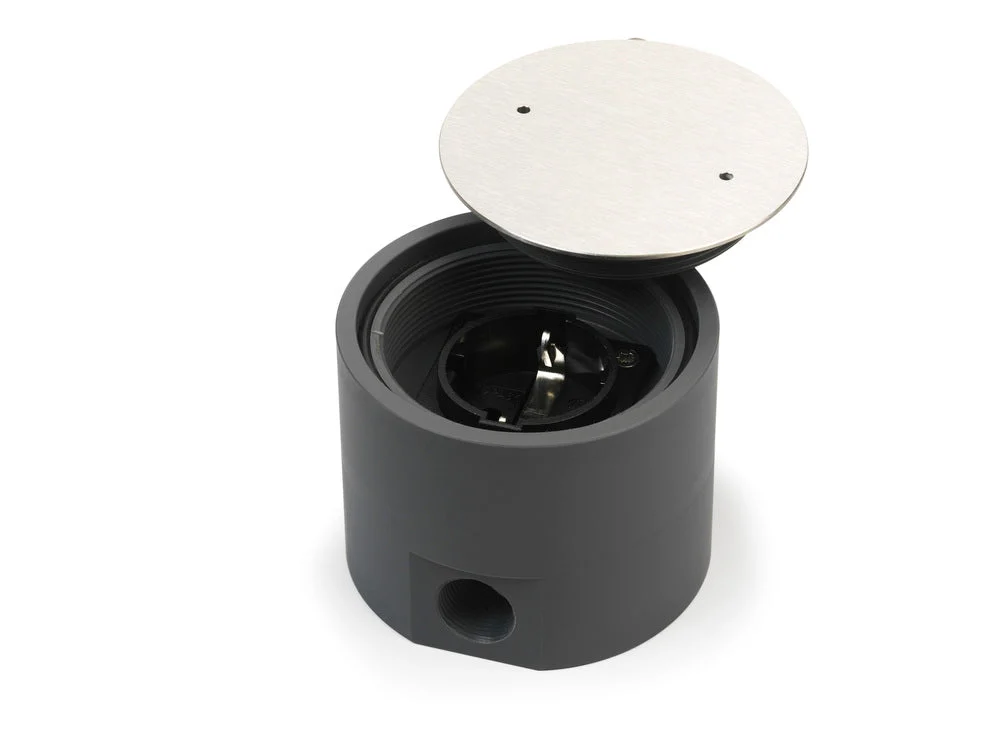

This OCS floor socket from the 7700 series features one 230V Schuko outlet. When the lid is closed, the floor box is IP67. Should the socket also be waterproof when plugged in? Then you can combine the floor box with the corresponding PVC attachment tube (77.77.039). The pour-in part of this OCS floor socket is made of solid PVC. The PVC-U offers good chemical resistance to acids, alkalis and industrial chemicals. In addition, PVC-U is resistant to substances such as alkalis, acids and salts, drinking water and demineralized water.
Specifications
Cover model : Round
Number of inlets : 2
Number of device cups : 1
Number of socket outlets with protective contact (SCHUKO) : 1
Number of UK BS1363 sockets : 0
With cable outlet in cover : No
Material : Other
Surface protection housing : Untreated
Material cover lid : Stainless steel
Surface protection cover lid : Other
Surface treatment cover lid : Brushed
Degree of protection (IP) : IP67
With opening carpeting : No
Depth of flooring recess (mm) : 0
Protective frame carpeting : No
Color : Other
Suitable for indoor installation : Yes
Suitable for outdoor installation : No
Suitable for sub-floor duct : No
Suitable for hollow floor : Yes
Suitable for double floor built-in : No
Suitable for concrete installation : Yes
Suitable for floors in computer rooms : Yes
Suitable for wet cleaning : Yes
Outer-diameter (mm) : 90
Length built-in dimension (mm) : 90
Width built-in dimension (mm) : 90
Built-in diameter (mm) : 90
Min. built-in depth (mm) : 76
