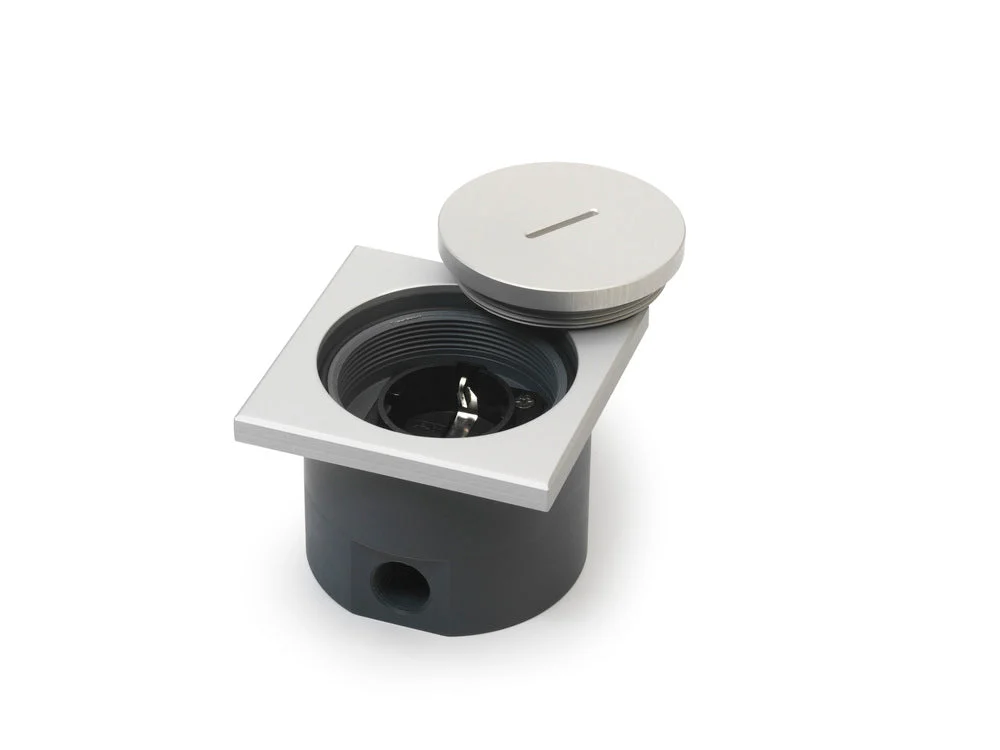

The collapse section of this OCS 7600 Series floor socket is made of solid PVC. In addition, the cover and associated part is made of solid aluminum and is anodized in stainless steel look This 7601 floor socket has one 230V outlet. With the included key, the floor pot can be opened and closed. The OCS 7601 slump floor box is suitable for installation in gardens, swimming pools and chemical industry. When closed, the floor socket is IP67 waterproof.
Specifications
Cover model : Square
Number of inlets : 1
Number of device cups : 1
Number of socket outlets with protective contact (SCHUKO) : 1
Number of UK BS1363 sockets : 0
With cable outlet in cover : No
Material : Aluminum
Surface protection housing : Other
Material cover lid : Aluminum
Surface protection cover lid : Anodised
Surface treatment cover lid : Untreated
Degree of protection (IP) : Other
With opening carpeting : No
Depth of flooring recess (mm) : 0
Protective frame carpeting : No
Color : Other
Suitable for sub-floor duct : No
Suitable for hollow floor : No
Suitable for double floor built-in : No
Suitable for concrete installation : Yes
Suitable for floors in computer rooms : No
Suitable for wet cleaning : Yes
Width outside dimension (mm) : 100
Length external dimension (mm) : 100
Length built-in dimension (mm) : 100
Width built-in dimension (mm) : 100
Built-in diameter (mm) : 90
Min. built-in depth (mm) : 76
