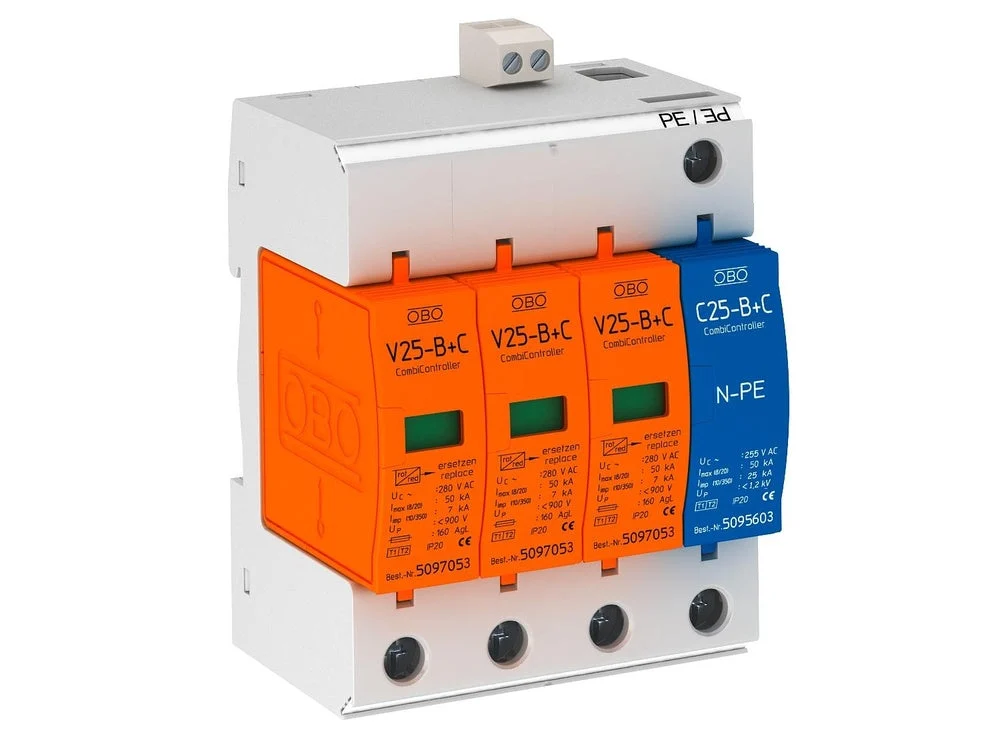

OBO V25 Mains Surge Protector – 5094510

Obo V25 280 mains surge protector, orange/gray, poles design 3+N/PE, protection class B coarse/C medium, mains form TT +TN-S, with signaling contact, DRA (DIN-rail adapter), DIN-rail module design, rated voltage 280V, max. Continuous voltage AC 280V, DIN size 3 TE (Grid size).

Specifications

System configuration TN : Yes
System configuration TN-C-S : Yes
System configuration TN-S : Yes
System configuration TT : Yes
Nominal discharge surge current (8/20) (kA) : 30
Nominal voltage AC (V) : 230
Nominal voltage DC (V) : 230
Max. continuous voltage AC (V) : 280
Max. continuous voltage DC (V) : 200
Max. PV-voltage (V) : 200
Voltage protection level (kV) : 0.9
Construction size : 3 modular spacing
Max. conductor cross section solid (solid, stranded) (mm²) : 35
With remote signalling contact : Yes
Signalling at the device : None
Degree of protection (IP) : IP20
