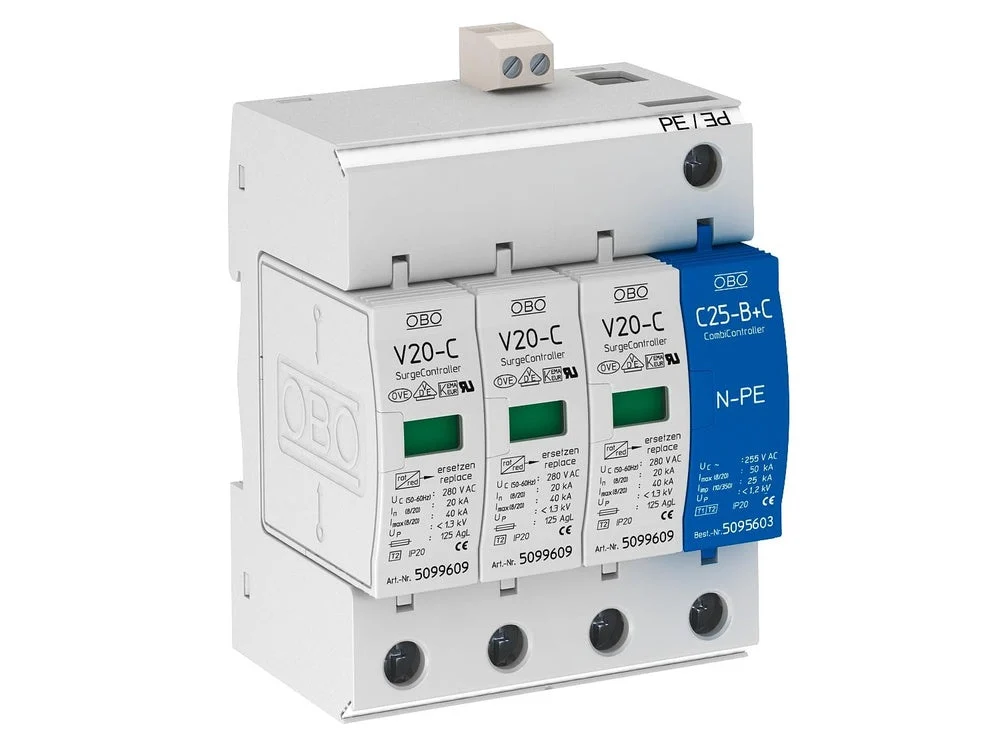

OBO V20 Mains Surge Protector – 5094765

Obo V20 280 mains surge protector, gray, pole design 3+N/PE, protection class 2(c), mains form TT +TN-S, with signaling contact, DIN rail 35mm, DIN rail module design, rated voltage 280V, max. Continuous voltage AC 280V, degree of protection (IP) IP20, DIN size 4 TE (Grid Size).

Specifications

Nominal discharge surge current (8/20) (kA) : 20
Max. discharge surge current (8/20) (kA) : 40
Nominal voltage AC (V) : 230
Max. continuous voltage AC (V) : 280
Voltage protection level (kV) : 1.3
Integrated backup fuse : No
Mounting method : DIN rail (top hat rail) 35 mm
Construction size : 4 modular spacing
Max. conductor cross section solid (solid, stranded) (mm²) : 35
Max. conductor cross section flexible (fine-strand) (mm²) : 25
With remote signalling contact : Yes
Signalling at the device : Optic
Category type 2 : Yes
Degree of protection (IP) : IP20
