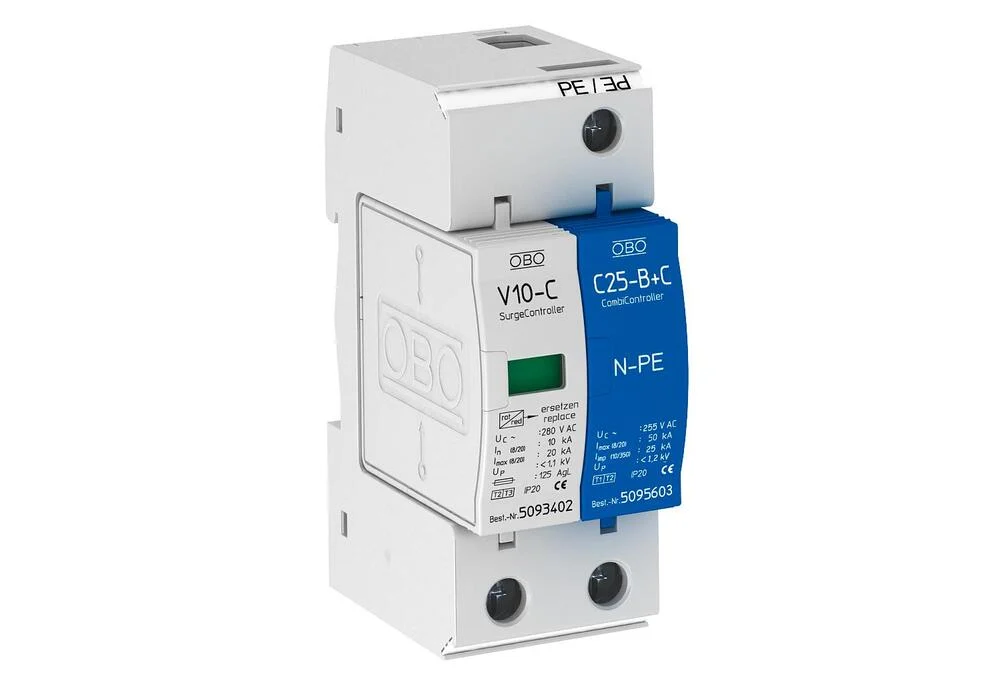

OBO V10 Mains Surge Protector – 5093418

Obo V10 mains surge protector, gray, pole design 1+N/PE, protection class C medium/D fine, mains form other, DIN rail 35mm, DIN rail module design, rated voltage 280V, max. Continuous voltage AC 280V, degree of protection (IP) IP20, DIN size 2 TE (Grid size).

Specifications

System configuration TN : Yes
System configuration TN-C-S : Yes
System configuration TN-S : Yes
System configuration TT : Yes
Nominal discharge surge current (8/20) (kA) : 10
Max. discharge surge current (8/20) (kA) : 20
Nominal voltage AC (V) : 230
Nominal voltage DC (V) : 230
Max. continuous voltage AC (V) : 280
Voltage protection level (kV) : 1.1
Voltage protection level N-PE (kV) : 1.2
Mounting method : DIN rail (top hat rail) 35 mm
Construction size : 2 modular spacing
Max. conductor cross section solid (solid, stranded) (mm²) : 35
With remote signalling contact : No
Signalling at the device : Optic
Category type 2 : Yes
Degree of protection (IP) : IP20
