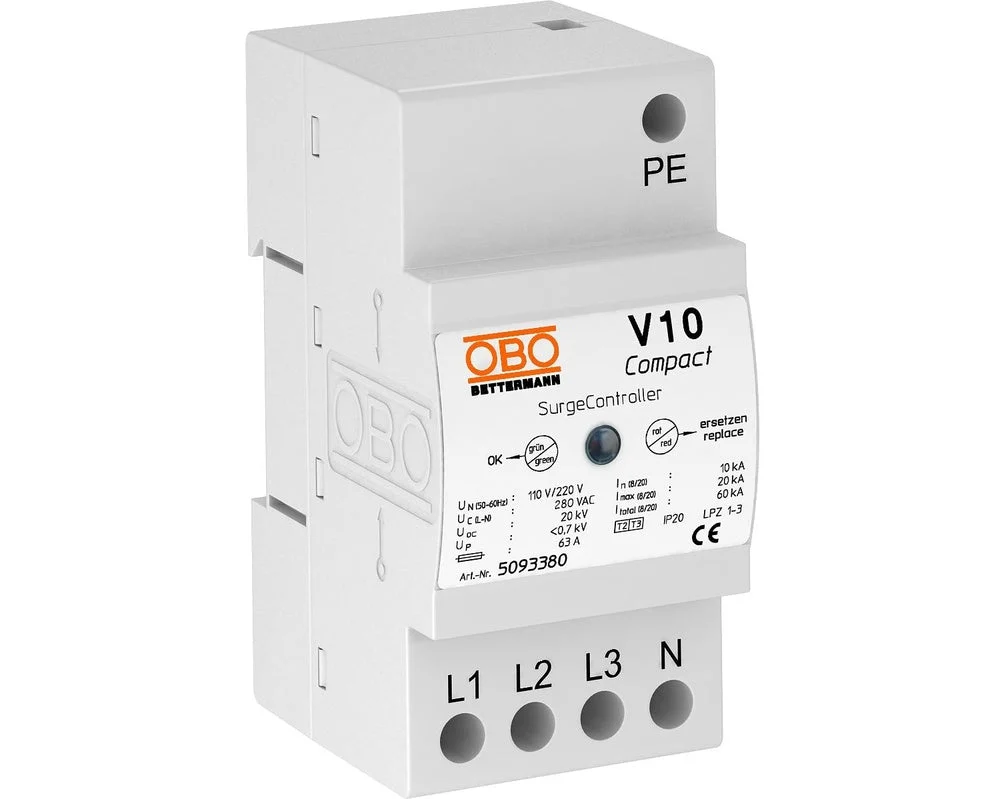

OBO V10 Mains Surge Protector – 5093380

Obo V10 mains surge protector, poles design 3+N/PE, mains form other, DIN rail 35mm, DIN rail module design, max. Continuous voltage AC 255V, degree of protection (IP) IP20, DIN size other, max. Conductor cross-section flexible 10mm², max. Conductor cross-section rigid (solid/me 10mm².

Specifications

System configuration TN : Yes
System configuration TN-C-S : Yes
System configuration TN-S : Yes
System configuration TT : Yes
Nominal discharge surge current (8/20) (kA) : 10
Max. discharge surge current (8/20) (kA) : 20
Nominal voltage AC (V) : 230
Nominal voltage DC (V) : 230
Max. continuous voltage AC (V) : 255
Voltage protection level (kV) : 1.1
Integrated backup fuse : No
Mounting method : DIN rail (top hat rail) 35 mm
Construction size : Other
Max. conductor cross section solid (solid, stranded) (mm²) : 10
Max. conductor cross section flexible (fine-strand) (mm²) : 10
With remote signalling contact : No
Signalling at the device : Optic
Category type 2 : Yes
Degree of protection (IP) : IP20
