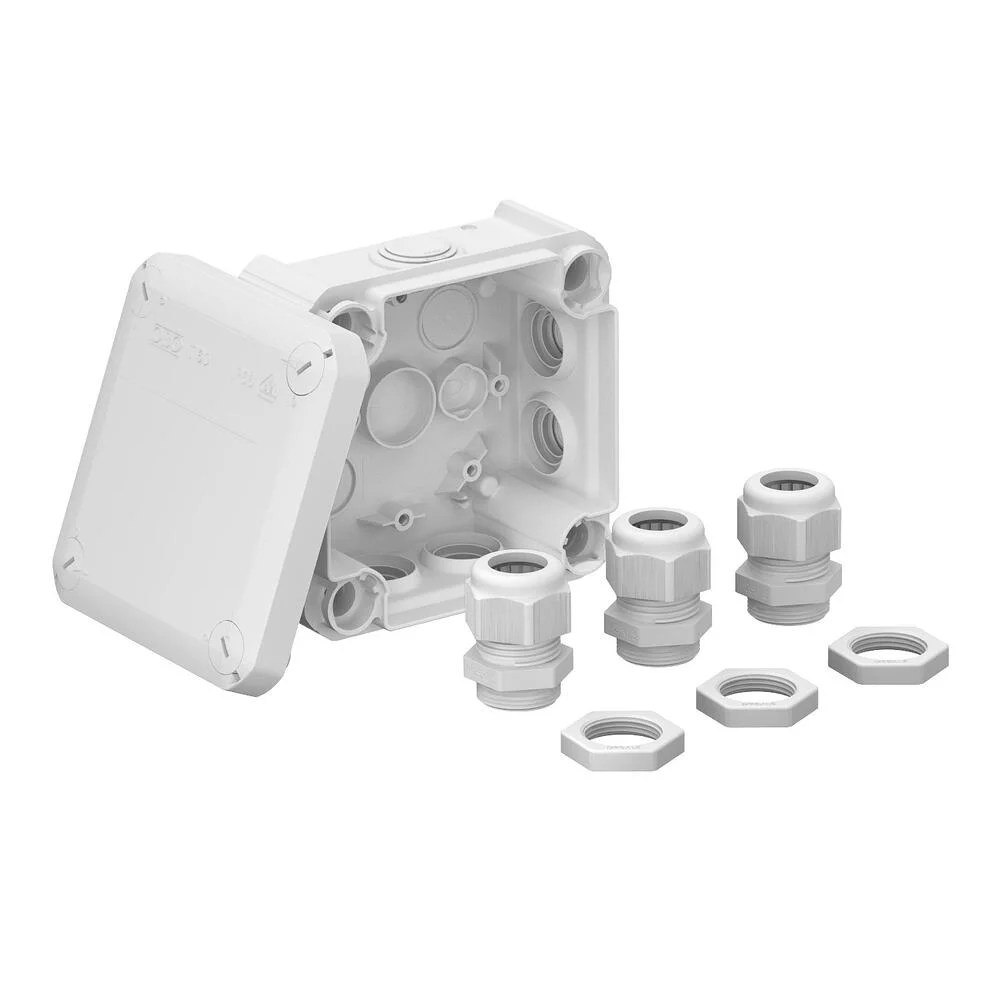

Because this T60 cable box from OBO’s T Series can be moved, conduits can be installed directly through the 7 x M25 seals. It is also possible to cut the seals with a knife in designated places to create an entry opening for cables or pipes. Alternatively, glands can be inserted through the openings instead of the seals and secured from the inside with a locknut. This junction box comes with 3 glands. The lid has a text field and is sealable.
Specifications
Max. conductor cross section (mm²) : 6
Equipped with : None
Shape : Square
Mounting method : Wall-/ceiling mounting
For tube diameter : Other
Inlet from the rear : Yes
Length (mm) : 114
Width (mm) : 114
Depth (mm) : 57
Tackable : Yes
Number of inlets : 7
Type of housing feed-through : Trimmable step membrane
Material : Plastic
Halogen free : Yes
Surface protection : Untreated
Color : Grey
Degree of protection (IP) : IP66
Transparent cover : No
Cover attachment : Screwed
Sealable : Yes
Rated insulation voltage Ui (V) : 500
Circuit integrity : None
With screening : No
Weatherproof : No
Working temperature (°C) : -5 °C to 60 °C
Explosion-tested version : No
For Ex-zone gas : None
For Ex-Zone dust : None
