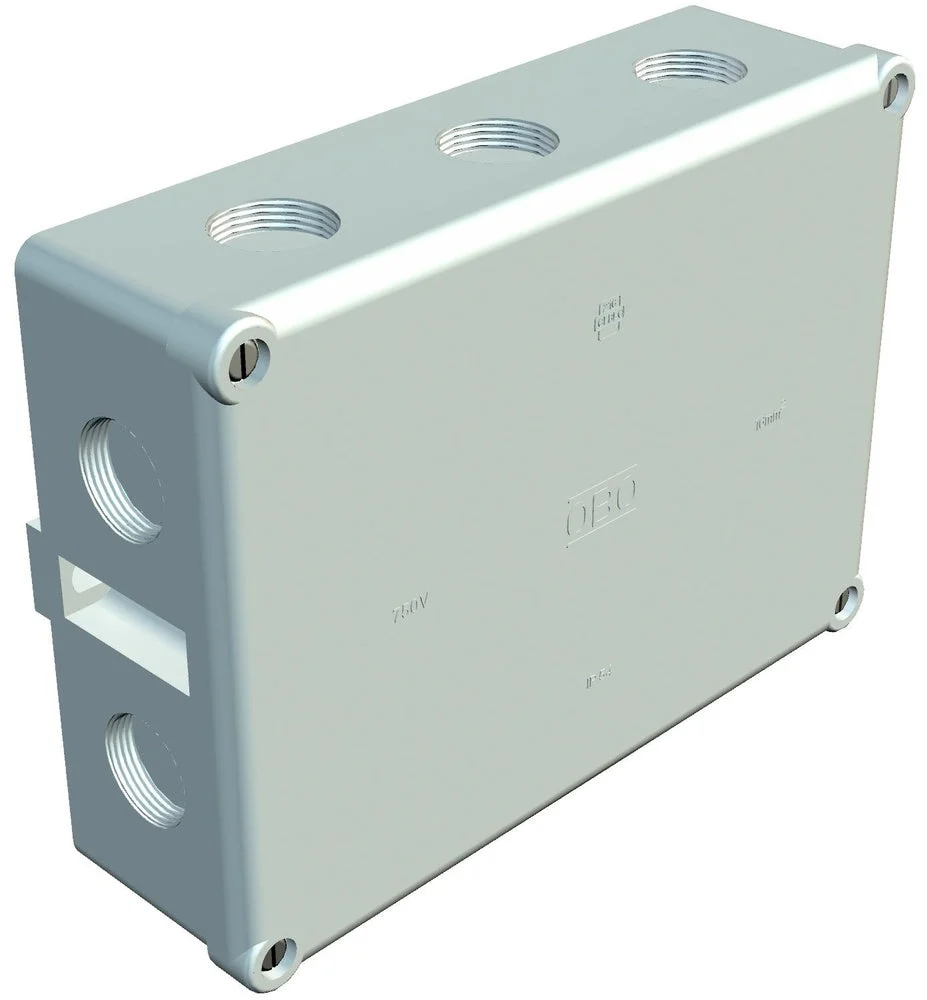

Obo B 12 surface mount box wall/ceiling, plastic, gray, (LxWxH) 144x196x54mm, depth 71mm, wall/ceiling mounting, rectangular, max. Conductor cross-section 16mm², rated insulation voltage Ui 660V, for tube diameter 25mm, housing penetration type threaded and breakout p, 10 entries.
Specifications
Max. conductor cross section (mm²) : 16
Equipped with : None
Shape : Rectangular
Mounting method : Wall-/ceiling mounting
For tube diameter : 25 mm
Inlet from the rear : No
Length (mm) : 144
Width (mm) : 196
Depth (mm) : 71
Tackable : No
Number of inlets : 10
Type of housing feed-through : Thread and prestamping
Material : Plastic
Halogen free : Yes
Surface protection : Untreated
Color : Grey
Degree of protection (IP) : IP54
Transparent cover : No
Cover attachment : Screwed
Sealable : Yes
Rated insulation voltage Ui (V) : 660
Circuit integrity : None
With screening : No
Weatherproof : No
Explosion-tested version : No
For Ex-zone gas : None
For Ex-Zone dust : None
