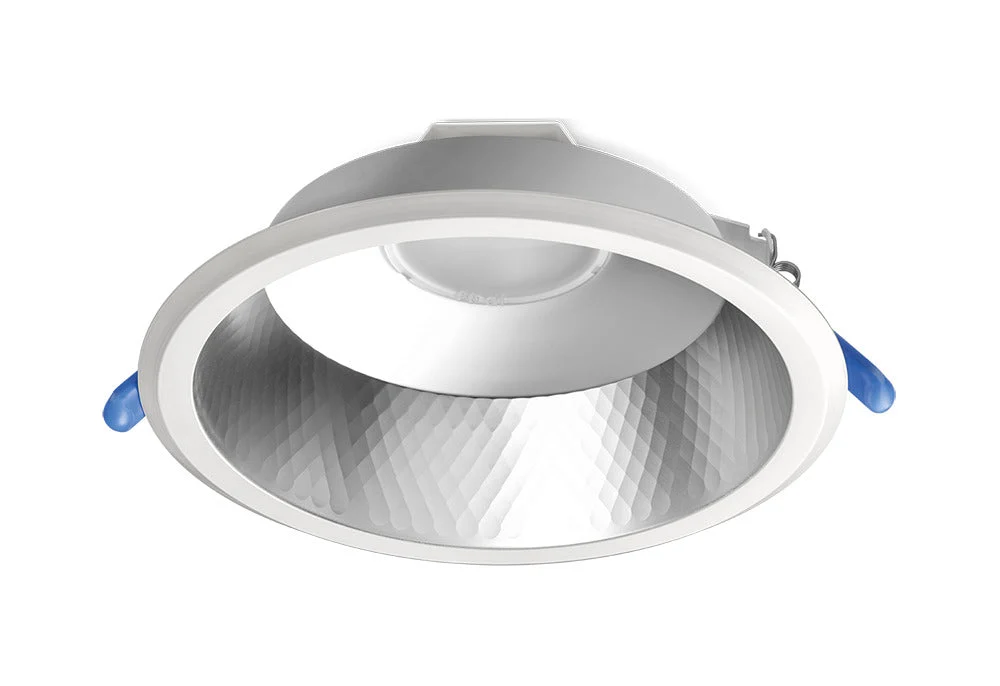

Breed applicable downlight with a faceted matte gloss aluminum reflector for an excellent light image. Smooth white outer edge integrated into the reflector. Entirely aluminum design for excellent light image and cooling of the high-quality COB LED module. Very uniform light image and the special diffuser makes the light soft and even.
As for energy saving, maintenance, and investment, it is the ultimate replacement for the PLC downlight. Perfect downlight for general and traffic areas. Includes driver and mounted cord 1.9 m with plug. The cord is omitted with the option of Wieland chassis part GST18i3 or GST18i5.
Specifications
Suitable for surface mounting : No
Suitable for built-in mounting : Yes
Suitable for wall mounting : No
Suitable for suspended mounting : No
Suitable for ceiling mounting : Yes
Suitable for traverse mounting : No
Suitable for pedestal/floor mounting : No
Suitable for light-track mounting : No
Suitable for clamp-mounting : No
Suitable for low voltage cable system : No
Adjustability : Not adjustable
With movement sensor : No
With light sensor : No
Lamp type : LED not exchangeable
With light source : Yes
Suitable for number of lamps : 1
Lamp holder : None
Material : Aluminum
Surface protection : Untreated
Color housing : Aluminum
Material cover : None
Surface brushed : No
Voltage-type : AC
Nominal voltage (V) : 220 V to 240 V
Type of control gear : LED operating device current-controlled
With control gear : Yes
Exchangeable control gear : Yes
Dimming depending on control gear : Yes
Dimming 0-10 V : No
Dimming 1-10 V : No
Dimming DALI : No
Dimming DMX : No
Dimming DSI : No
Dimming potentiometer (integrated) : No
Dimming GPRS : No
Dimming LineSwitch : No
Dimming manufacturer’s proprietary system : No
Dimming mains voltage modulation : No
Dimming phase cut-off : No
Dimming phase cut-on : No
Dimming programmable : No
Dimming RF : No
Dimming Sine Wave Reduction : No
Dimming Touch and Dim : No
Dimming Zigbee : No
Dimming with push-button : No
No dim function : Yes
Reflector : Matt
Light distributor : Reflector
Light sharing : Symmetric
Beam angle : Wide beam 41-80°
Light outlet : Direct
Energy efficiency class of the built-in lamp : A++, A+, A (LED)
Rated life time L80/B10 at 25 °C (h) : 50000
Degree of protection (IP) : IP44
Impact strength : IK07
Protection class : II
Rated ambient temperature according to IEC62722-2-1 (°C) : 10 °C to 40 °C
Max. system power (W) : 20
Colour of light : White
Colour temperature (K) : 4000 K to 4000 K
Color rendering index CRI : 80-89
Luminous flux (lm) : 2250 lm to 2250 lm
Rated luminous flux according to IEC 62722-2-1 (lm) : 2250
Power factor : 0.95
Flickering value Pst LM : 1
Color temperature adjustable : No
Luminous flux adjustable : No
Beam angle adjustable : No
Stroboscope effect value SVM : 0.4
Height/depth (mm) : 103
Outer-diameter (mm) : 233
Built-in height/depth (mm) : 123
Built-in diameter (mm) : 200 mm to 215 mm
Type of wiring : Ending
Conductor cross section (mm²) : 0.5
Connectable conductor cross section (mm²) : 0.75 mm² to 2.5 mm²
Connection type : Other
Luminaire with limited surface temperature, sign “D“ : No
Max. number of luminaires per miniature circuit breaker B16 : 60
Max. number of luminaires per miniature circuit breaker C16 : 95
Emergency power supply integrated : No
Filament test according to IEC 60695-2-11 : 650 °C – 30 s
Luminaire efficacy (lm/W) : 112
Suitable for workplace according to EN 12464-1 : No
Covering of the luminaire with thermally insulating material possible : No
IFTTT support available : No
Color consistency (McAdam ellipse) : SDCM3
Unified Glare Ratio (UGR) : 22
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Compatible with Amazon Alexa : No
