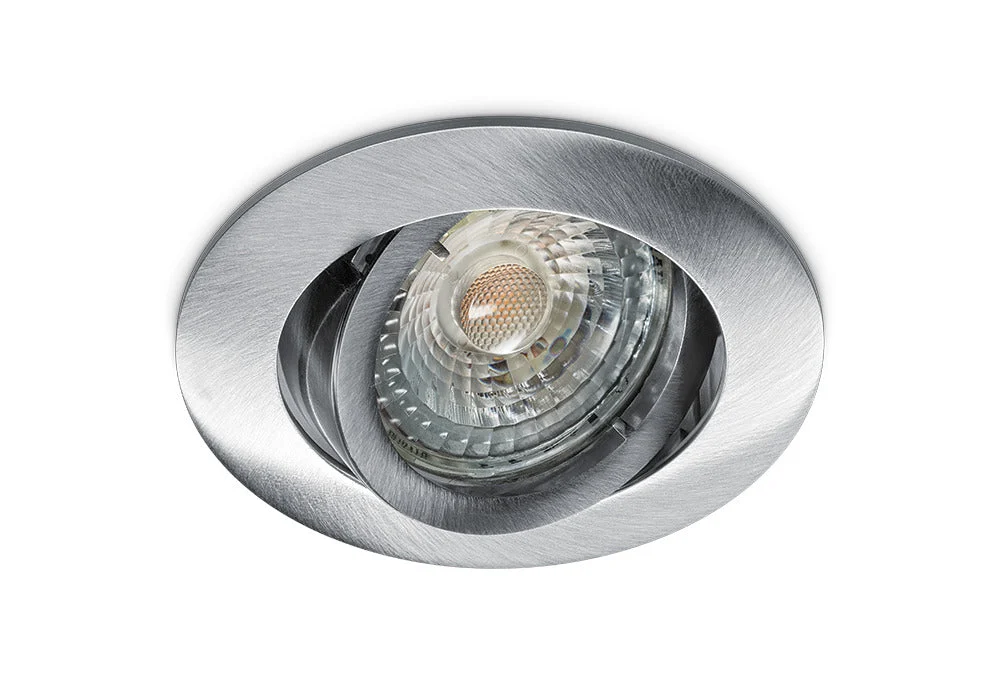

Norton HLK-A Recessed spotlight for LED source downlight/spotlight/light, subcategory spotlight, suitable for lamp wattage 50W, housing chrome, suitable for recessed mounting, degree of protection (IP) IP20, outer diameter 82mm, adjustability swivel, rated voltage 220 – 240V, suitable for ceiling mounting.
Specifications
Suitable for surface mounting : No
Suitable for built-in mounting : Yes
Suitable for wall mounting : No
Suitable for suspended mounting : No
Suitable for ceiling mounting : Yes
Suitable for traverse mounting : No
Suitable for pedestal/floor mounting : No
Suitable for light-track mounting : No
Suitable for clamp-mounting : No
Suitable for low voltage cable system : No
Adjustability : Swivelling
With movement sensor : No
With light sensor : No
Lamp type : HV halogen lamp
With light source : No
Suitable for number of lamps : 1
Lamp holder : GU10
Material : Aluminum
Surface protection : Untreated
Color housing : Chrome
Material cover : None
Surface brushed : Yes
Voltage-type : AC
Nominal voltage (V) : 220 V to 240 V
With control gear : No
Dimming depending on control gear : No
Dimming 0-10 V : No
Dimming 1-10 V : No
Dimming DALI : No
Dimming DMX : No
Dimming potentiometer (integrated) : No
Dimming GPRS : No
Dimming LineSwitch : No
Dimming manufacturer’s proprietary system : No
Dimming mains voltage modulation : No
Dimming phase cut-off : Yes
Dimming phase cut-on : No
Dimming programmable : No
Dimming RF : No
Dimming Sine Wave Reduction : No
Dimming Touch and Dim : No
Dimming Zigbee : No
Dimming with push-button : No
No dim function : No
Reflector : High-gloss
Light distributor : Other
Light sharing : Symmetric
Light outlet : Direct
Degree of protection (IP) : IP20
Impact strength : IK02
Protection class : II
Suitable for lamp power (W) : 50 W to 50 W
Height/depth (mm) : 103
Outer-diameter (mm) : 82
Built-in height/depth (mm) : 70
Built-in diameter (mm) : 67 mm to 74 mm
Type of wiring : Ending
Conductor cross section (mm²) : 0.5
Connectable conductor cross section (mm²) : 0.75 mm² to 2.5 mm²
Connection type : Screwed terminal
Luminaire with limited surface temperature, sign “D“ : No
Emergency power supply integrated : No
Filament test according to IEC 60695-2-11 : 850 °C – 30 s
Suitable for workplace according to EN 12464-1 : No
Covering of the luminaire with thermally insulating material possible : No
