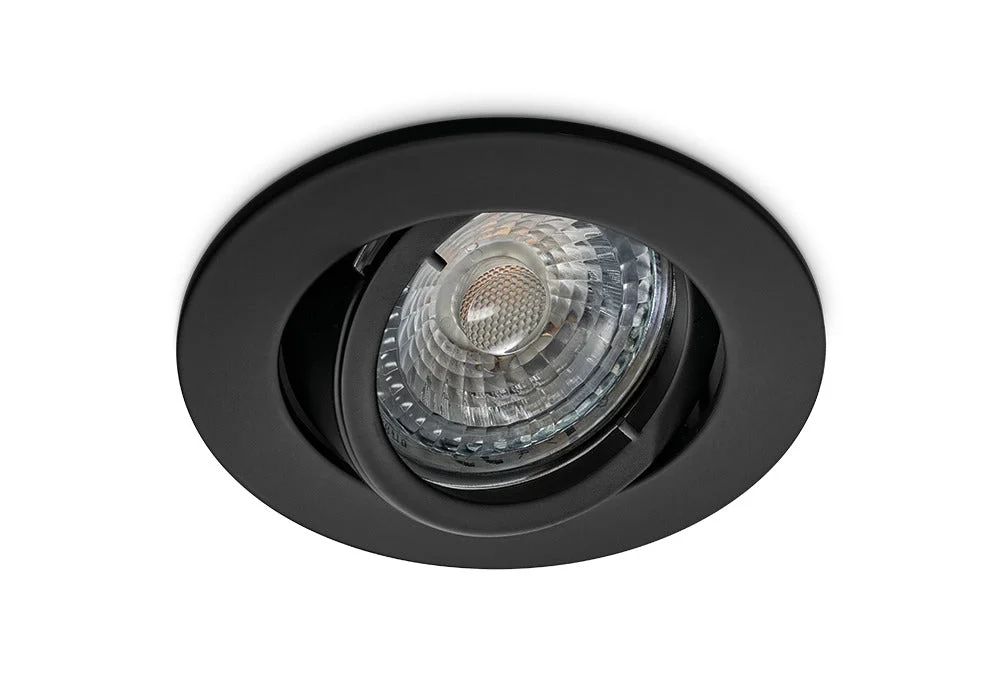

Norton HLK-A Recessed spotlight for LED source downlight/spotlight/spotlight, subcategory spotlight, suitable for lamp wattage 50W, housing black, suitable for recessed mounting, degree of protection (IP) IP20, outer diameter 82mm, adjustability swivel, rated voltage 12V, suitable for ceiling mounting.
Specifications
Suitable for surface mounting : No
Suitable for built-in mounting : Yes
Suitable for wall mounting : No
Suitable for suspended mounting : No
Suitable for ceiling mounting : Yes
Suitable for traverse mounting : No
Suitable for pedestal/floor mounting : No
Suitable for light-track mounting : No
Suitable for clamp-mounting : No
Suitable for low voltage cable system : No
Adjustability : Swivelling
With movement sensor : No
With light sensor : No
Lamp type : LV halogen lamp
With light source : No
Suitable for number of lamps : 1
Lamp holder : GX5.3
Material : Aluminum
Surface protection : Lacquered
Color housing : Black
Material cover : None
Surface brushed : No
Voltage-type : AC
Nominal voltage (V) : 12 V to 12 V
With control gear : No
Dimming depending on control gear : Yes
Dimming 0-10 V : No
Dimming 1-10 V : No
Dimming DALI : No
Dimming DMX : No
Dimming potentiometer (integrated) : No
Dimming GPRS : No
Dimming LineSwitch : No
Dimming manufacturer’s proprietary system : No
Dimming mains voltage modulation : No
Dimming phase cut-off : Yes
Dimming phase cut-on : No
Dimming programmable : No
Dimming RF : No
Dimming Sine Wave Reduction : No
Dimming Touch and Dim : No
Dimming Zigbee : No
Dimming with push-button : No
No dim function : No
Reflector : High-gloss
Light distributor : Other
Light sharing : Symmetric
Light outlet : Direct
Degree of protection (IP) : IP20
Impact strength : IK02
Protection class : III
Suitable for lamp power (W) : 50 W to 50 W
Height/depth (mm) : 235
Outer-diameter (mm) : 82
Built-in height/depth (mm) : 70
Built-in diameter (mm) : 67 mm to 74 mm
Type of wiring : Ending
Conductor cross section (mm²) : 0.5
Connectable conductor cross section (mm²) : 0.75 mm² to 2.5 mm²
Connection type : Screwed terminal
Luminaire with limited surface temperature, sign “D“ : No
Emergency power supply integrated : No
Filament test according to IEC 60695-2-11 : 850 °C – 30 s
Suitable for workplace according to EN 12464-1 : No
Covering of the luminaire with thermally insulating material possible : No
