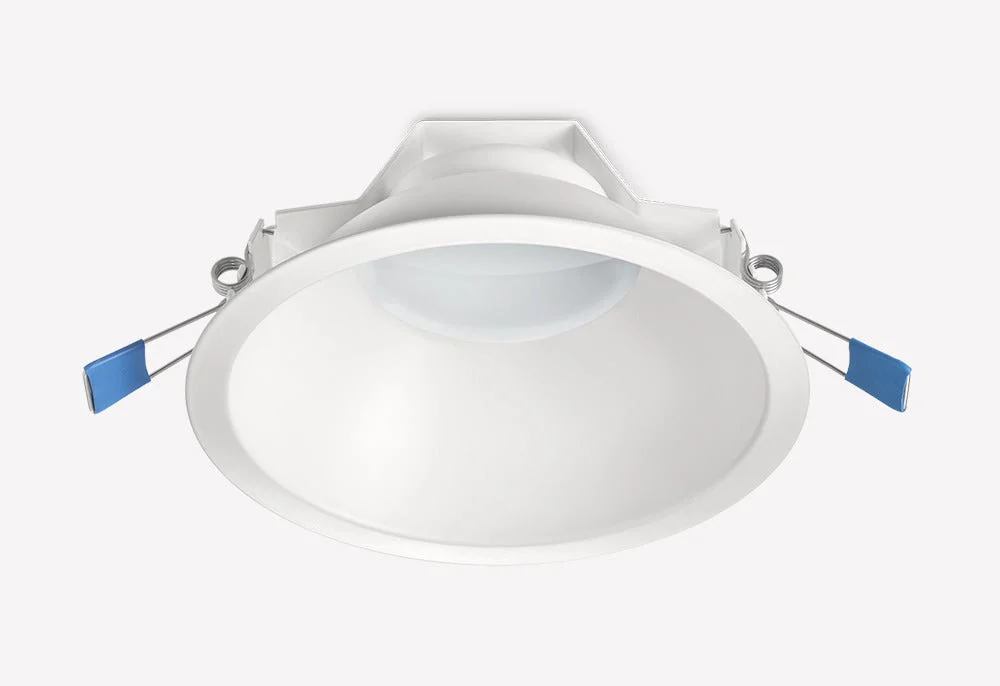

House and reflector made of white aluminum, inside of the reflector is matte. A very efficient, budget-friendly downlight suitable for general and traffic areas. The COB led module produces a very uniform light image and due to the special diffuser, the light is soft and even. This is a high-quality fixture that is very easy to install, thanks to the already mounted driver and GST 18i3 male connector. Due to the special coating, it is less sensitive to dust and fingerprints. In terms of energy saving, maintenance and investment, this is the ultimate replacement for the PLC downlight.
Specifications
Suitable for surface mounting : No
Suitable for built-in mounting : Yes
Suitable for wall mounting : No
Suitable for suspended mounting : No
Suitable for ceiling mounting : Yes
Suitable for traverse mounting : No
Suitable for pedestal/floor mounting : No
Suitable for light-track mounting : No
Suitable for clamp-mounting : No
Suitable for low voltage cable system : No
Adjustability : Not adjustable
With movement sensor : No
With light sensor : No
Lamp type : LED not exchangeable
With light source : Yes
Suitable for number of lamps : 1
Lamp holder : None
Material : Aluminum
Surface protection : Lacquered
Color housing : White
Material cover : None
Surface brushed : No
Voltage-type : AC
Nominal voltage (V) : 198 V to 264 V
Type of control gear : LED operating device current-controlled
With control gear : Yes
Exchangeable control gear : Yes
Dimming depending on control gear : Yes
Dimming 0-10 V : No
Dimming 1-10 V : No
Dimming DALI : No
Dimming DMX : No
Dimming DSI : No
Dimming potentiometer (integrated) : No
Dimming GPRS : No
Dimming LineSwitch : No
Dimming manufacturer’s proprietary system : No
Dimming mains voltage modulation : No
Dimming phase cut-off : No
Dimming phase cut-on : No
Dimming programmable : No
Dimming RF : No
Dimming Sine Wave Reduction : No
Dimming Touch and Dim : No
Dimming Zigbee : No
Dimming with push-button : No
No dim function : Yes
Reflector : Matt
Light distributor : Reflector
Light sharing : Symmetric
Beam angle : Wide beam 41-80°
Light outlet : Direct
Energy efficiency class : A+
Energy efficiency class of the built-in lamp : A++, A+, A (LED)
Degree of protection (IP) : IP44
Impact strength : IK07
Protection class : II
Rated ambient temperature according to IEC62722-2-1 (°C) : 10 °C to 40 °C
Max. system power (W) : 10
Colour of light : White
Colour temperature (K) : 4000 K to 4000 K
Color rendering index CRI : 80-89
Luminous flux (lm) : 1200 lm to 1200 lm
Rated luminous flux according to IEC 62722-2-1 (lm) : 1200
Power factor : 0.95
Flickering value Pst LM : 1
Color temperature adjustable : No
Luminous flux adjustable : No
Beam angle adjustable : No
Height/depth (mm) : 85
Outer-diameter (mm) : 170
Built-in height/depth (mm) : 105
Built-in diameter (mm) : 150 mm to 155 mm
Type of wiring : Ending
Number of poles : 2
Conductor cross section (mm²) : 0.5
Connectable conductor cross section (mm²) : 0.75 mm² to 2.5 mm²
Connection type : Other
Luminaire with limited surface temperature, sign “D“ : No
Max. number of luminaires per miniature circuit breaker B16 : 50
Emergency power supply integrated : No
Filament test according to IEC 60695-2-11 : 650 °C – 30 s
Luminaire efficacy (lm/W) : 120
Suitable for workplace according to EN 12464-1 : No
Covering of the luminaire with thermally insulating material possible : No
IFTTT support available : No
Color consistency (McAdam ellipse) : SDCM3
Unified Glare Ratio (UGR) : 22
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Compatible with Amazon Alexa : No
