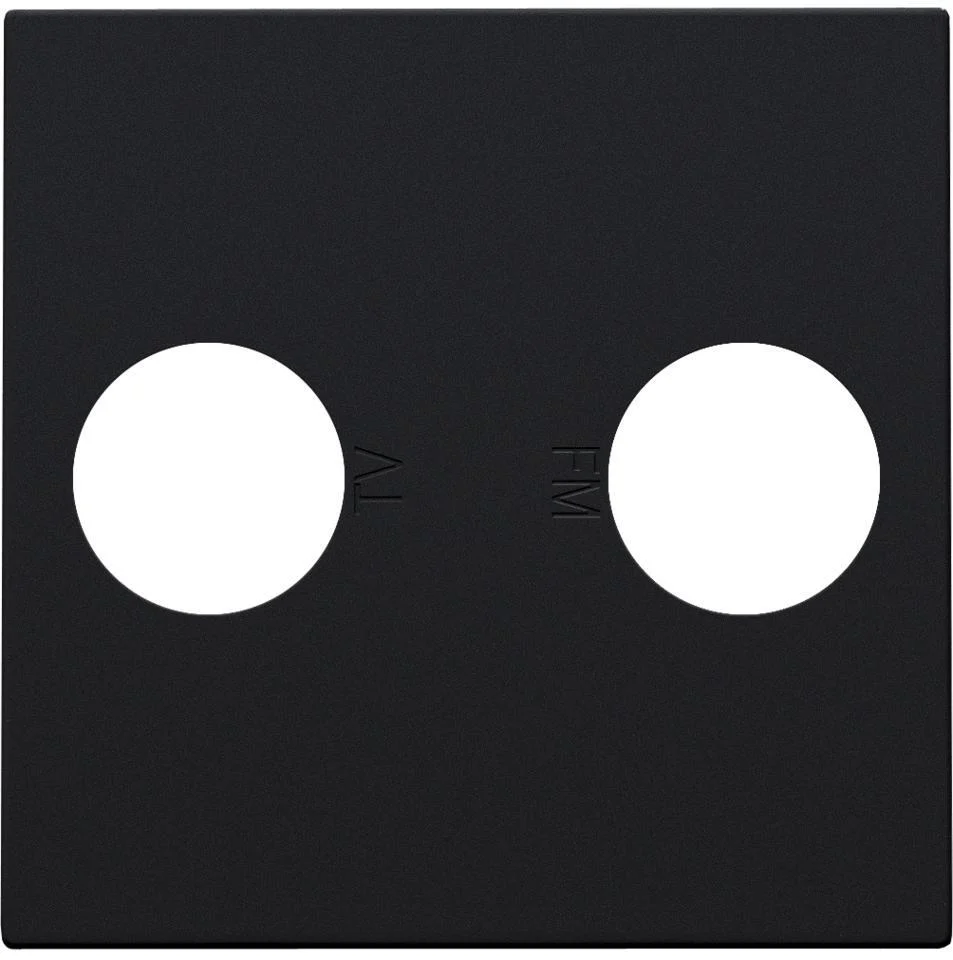

This 2-gang central plate from Niko’s Intense Matt Black series is intended for an EDU TV and an FM Telenetr connection. Both inputs are indicated by an FM or TV icon. The central plate can be clicked directly onto recessed 45 x 45 frames and are easily removed by pulling the plate away from the mechanism. Furthermore, the coax central plate is fully self-extinguishing, halogen-free and finished in a matte black color.
Specifications
Assembly arrangement : Central cover plate
Utilization : Other
Support ring : No
With dust cover : No
With hinged lid : No
Outlet direction : Straight
Imprintable label : Without indication field
With imprint : No
Mounting method : Flush mounted (plaster)
Material : Plastic
Halogen free : Yes
Anti-bacterial treatment : No
Surface protection : Other
Surface finishing : Matt
Color : Black
RAL-number (similar) : 9005
Transparent : No
Type of fastening : Engage (snap)
With buses/couplings : No
Suitable for number of connectors : 2
Shielded buses : Yes
Shielded housing : Yes
Luster terminal : No
With lighting : No
Suitable for degree of protection (IP) : IP41
Impact strength : IK06
Width of device (mm) : 45
Height of device (mm) : 45
Min. depth of built-in installation box (mm) : 50
