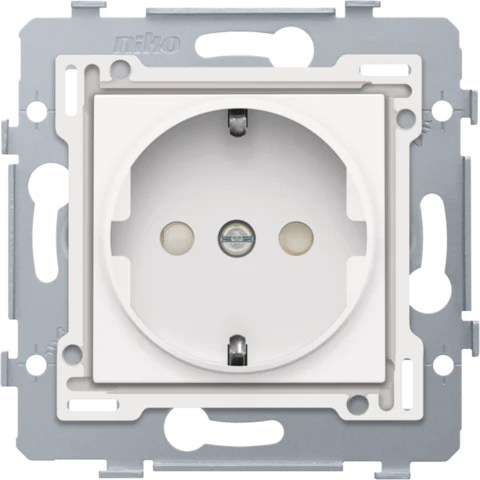

Compound two-pole flush-mounting socket outlet 16 A, 250 V (base and finishing set), with side earthing and central plate with shutters (flush-mounting depth 28.5 mm). The socket outlet is equipped with contact buses with a large contact surface area which must not rest on the base in order to be connected and plug-in terminals with releases. These releases can be operated from the front side by hand or with a screwdriver. The finishing color is bright white.
Specifications
Model : Protective contact (SCHUKO)
Protective contact : Yes
Protective earth pin round : No
Number of active pins (round) : 0
Number of active pins (flat) : 2
With signal lamp : No
With built-in USB power supply : No
Number of units : 1
Number of socket outlets switchable : 1
Number of phases : 2
Imprint/indication : None
Connection type : Push-in clamp
With hinged lid : No
With enhanced contact protection : Yes
Label space/information surface : No
Color : White
RAL-number (similar) : 9003
Metallic color : No
Transparent : No
Lockable : No
Eject-mechanism : No
With function lighting : No
With orientation lighting : No
Over voltage protection : No
Fault current protection : No
With miniature fuse : No
Special power supply : No special power supply
Mounting method : Flush mounted (plaster)
Type of fastening : Mounting with screw
Material : Plastic
Material quality : Thermoplastic
Halogen free : Yes
Surface protection : Lacquered
Surface finishing : Glossy
Anti-bacterial treatment : No
Rotated central insert : No
Nominal current (A) : 16
Nominal voltage (V) : 250
Suitable for degree of protection (IP) : IP41
Impact strength : IK06
Width of device (mm) : 73
Height of device (mm) : 73
Depth of device (mm) : 45
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Min. depth of built-in installation box (mm) : 40
Compatible with Amazon Alexa : No
IFTTT support available : No
