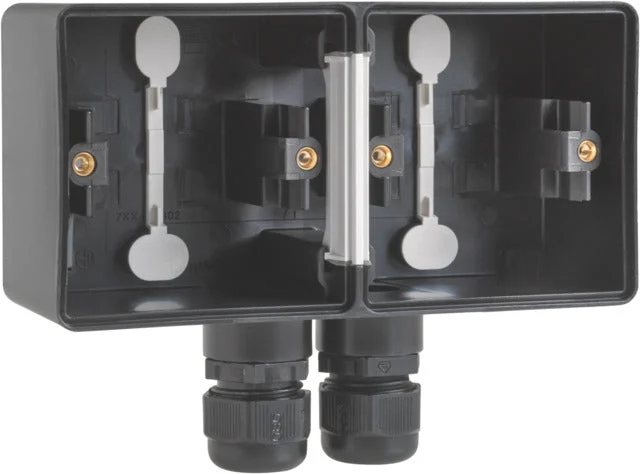

This double horizontal splash-proof surface-mounted box from Niko’s New Hydro series with two M20 inputs is suitable for installing two functions. The undertray is suitable for horizontal mounting. The inputs are located at the top and bottom. The attachment points are located 50 mm apart on the vertical axis and 71 mm apart on the horizontal axis. In addition, the base is impact resistant, dust resistant, halogen-free and self-extinguishing. This makes this surface-mounted box highly suitable for use in damp and demanding environments.
Specifications
Assembly arrangement : Surface mounted housing
Suitable for modular domestic switching devices : No
Number of units : 2
Mounting direction : Horizontal
Shape : Rectangular
Material : Plastic
Material quality : Other
Halogen free : Yes
Surface protection : Other
Color : Black
RAL-number (similar) : 9005
Transparent : No
With cover frame : No
Cross-trunking mounting : No
With duct entry : No
With cable entry : No
With screw gland entry : Yes
Shock resistant : Yes
Degree of protection (IP) : IP55
Width of device (mm) : 145
Height of device (mm) : 72
