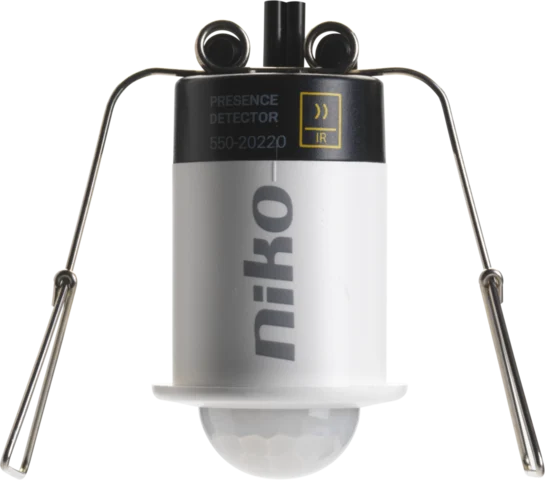

This motion detector from Niko’s Home Control series detects movement from a heat source using Passive Infrared (PIR) technology and is equipped with a light measuring cell that measures the incident light intensity. Depending on this data, Niko Home Control functions can be activated or deactivated. For example, the light at your front door can turn on at 30% when it gets dark, and the light switches to full strength only when motion is detected. The mini detector can be used in several ways: As a presence detector (automatically on/off with mini detector).
Specifications
Bus system KNX : No
Bus system KNX radio : No
Bus system radio frequent : No
Bus system LON : No
Bus system Powernet : No
Other bus systems : NHC
Radio frequent bidirectional : No
Model : Movement sensor
Mounting method : Flush mounted (plaster)
Material : Plastic
Material quality : Thermoplastic
Surface protection : Untreated
Surface finishing : Matt
Color : White
Transparent : Yes
With bus connection : Yes
Response value luminosity adjustable : Yes
Teach-function for response value luminosity : No
Switch-off delay self-learning : No
DALI-2 certified : No
Optimum mounting height (m) : 3
Max. transmission range sideways (m) : 4.5
Diameter detection range on floor (m) : 9.5
Number of channels : 1
Max. duty cycle (min) : 1440
