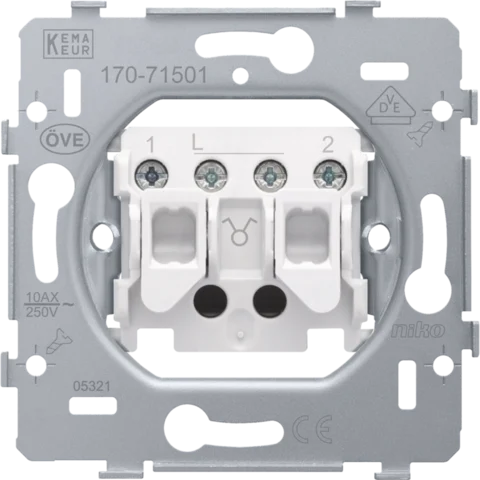

Series switch for switching two separate light points. Connection with screw terminals for conductors up to 2.5mm2. 10A/250V AC. Cover with switch rocker and cover frame. Without spreader clips.
Specifications
Wiring system : Series switch
Method of operation : Rocker/button
Assembly arrangement : Basic element
Push button switch : Yes
Number of rockers : 2
Mounting method : Flush mounted (plaster)
Type of fastening : Screw mounting
With mounting plate : Yes
Material : Plastic
Halogen free : Yes
Anti-bacterial treatment : No
Surface protection : Untreated
Label space/information surface : No
Illumination : Optional
Suitable for degree of protection (IP) : IP41
Nominal voltage (V) : 250
Rated current (A) : 10
Feedback-signal contact : No
Connection type : Screwed terminal
Heating switch : No
Washing machine switch : No
Width of device (mm) : 72
Height of device (mm) : 72
Depth of device (mm) : 42
Built-in depth (mm) : 18
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Min. depth of built-in installation box (mm) : 40
Compatible with Amazon Alexa : No
IFTTT support available : No
