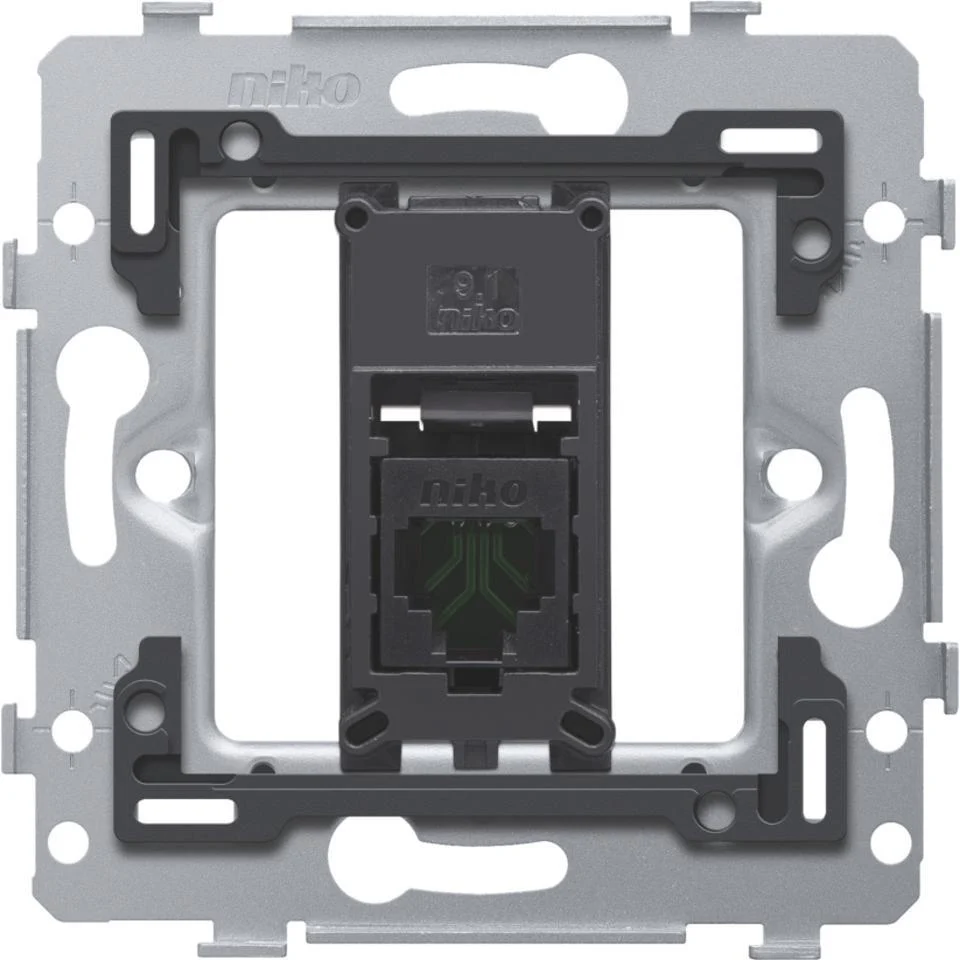

Niko Basic Element Data Socket Outlet Twisted Pair – 170-75251

This carrier ring from Niko features an RJ45 connector UTP cat. 5E. This connection serves to connect to a single device for telephony, Ethernet, IP or Internet applications. Furthermore, the support ring is attached by screw fastening and must be finished with a Niko central plate RJ45 and a cover frame in a color of your choice.

Specifications

Surface mounting : No
Flush-mounted installation : Yes
Duct installation : No
Floor box/sub-floor mounted : Yes
Assembly arrangement : Basic element with adapter plate
With buses/couplings : Yes
Suitable for number of connectors : 1
Category : 5E
Connection type : Insulation displacement connector
Shielded buses : No
Shielded housing : No
With label space : No
Outlet direction : Straight
With dust cover : No
With terminal resistor : No
Width of device (mm) : 45
Height of device (mm) : 45
