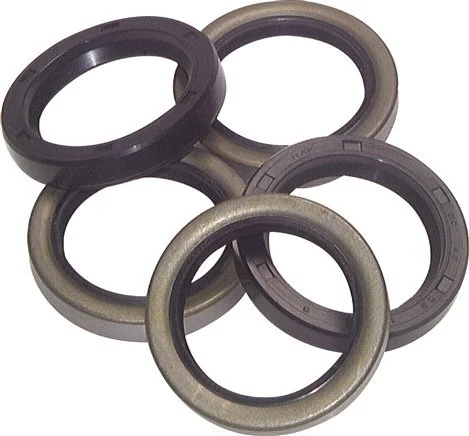

NBR Design CS Rotary Shaft Seal 190x220x12mm

This rotary shaft seal has an internal diameter of 190 mm, an external diameter of 220 mm and a 12 mm width. It is used to seal rotating machine components.

This seal consists of an NBR ring with an external reinforcement plate and a worm spring made of spring steel. The plate has a reinforcing cap. Sealing and assembly are the same as design B. Preferably used in harsh operating conditions and for larger dimensions. Suitable for a shaft circumferential speed of up to 14 m/s.

Pros:

• Suitable for temperatures from -30 to 100°C (-22 to 212°F)
• Less sensitive to assembly errors thanks to the reinforcing cap
• Provided with a dust lip for protection from dirt and corrosion

Specifications

Internal diameter (mm) : 190
Seal material : NBR (nitrile rubber)
Outer diameter (mm) : 220
Material spring : Steel
Retaining ring width (mm) : 12
Rotary shaft seal design DIN 3760 : CS (type C with dust lip)
Min temperature (°C) : -30
Max temperature (°C) : 100
Alternative designation : CS (B2 SL, (TR)F, DC, 824S, DFSK, TA, WCS)
Max circumferential speed (m/s) : 14
Metal jacket : Steel
Metal reinforcement : Fully enclosed
