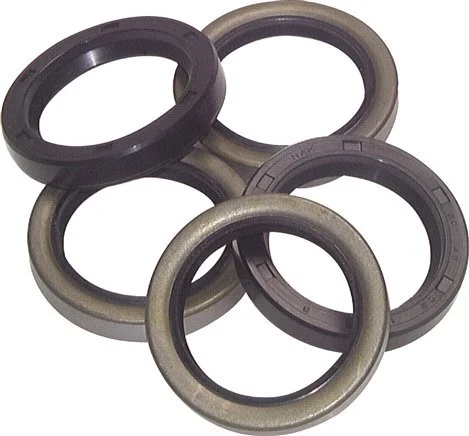

NBR Design C Rotary Shaft Seal 130x150x14mm

This rotary shaft seal has an internal diameter of 130 mm, an external diameter of 150 mm and a 14 mm width. It is used to seal rotating machine components.

This seal consists of an NBR ring with an external reinforcement plate and a worm spring made of spring steel. The plate has a reinforcing cap. Sealing and assembly are the same as design B. Preferably used in harsh operating conditions and for larger dimensions. Suitable for a shaft circumferential speed of up to 14 m/s.

Pros:

• Suitable for temperatures from -30 to 100°C (-22 to 212°F)
• Less sensitive to assembly errors thanks to the reinforcing cap

Specifications

Internal diameter (mm) : 130
Seal material : NBR (nitrile rubber)
Outer diameter (mm) : 150
Material spring : Steel
Retaining ring width (mm) : 14
Rotary shaft seal design DIN 3760 : C (double metal sleeve)
Min temperature (°C) : -30
Max temperature (°C) : 100
Alternative designation : C (B2, (TR)B, DB, 824N, DFK, SA, WC)
Max circumferential speed (m/s) : 14
Metal jacket : Steel
Metal reinforcement : Fully enclosed
