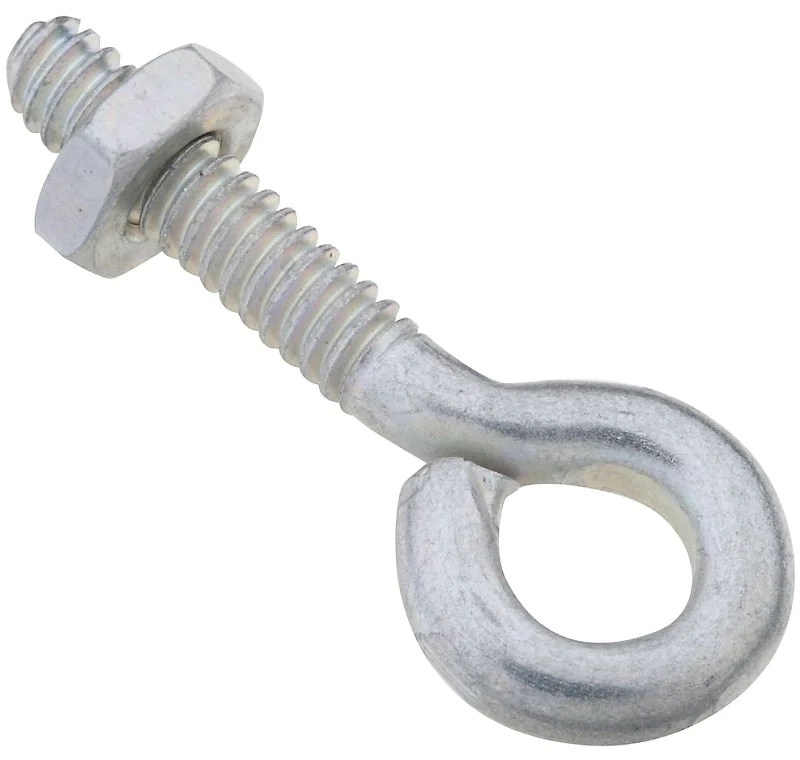

National Hardware N221-051 Eye Bolt, #10-24 Thread, Coarse Thread, 3/4 in L Thread, 0.28 in ID Dia Eye, 0.91 in L Shank, Pack of 20

For use in exterior and interior applications. Hex nut included.
Unit: EA
UPC: 038613123731
Model Number: N221-051

Features

• Standard machine screw threads
• Course machine screw thread on the extra large sizes (larger than 1/2 x 12)
• When subjected to 312 hr of salt fog spray testing, zinc-plated hardware showed severe corrosion while hardware with WeatherGuard protection withstood these harsh conditions with very little deterioration

Additional Information

• Eye Diameter: 0.28 in ID
• Finish: Zinc
• Includes: Hex Nut
• Material: Steel
• Overall Length: 1-1/2 in
• Shank Length: 0.91 in
• Shoulder Diameter: 0.16 in
• Thread Length: 3/4 in
• Thread Size: 10-24
• TPI/Pitch: 24
• Working Load Limit: 40 lb
