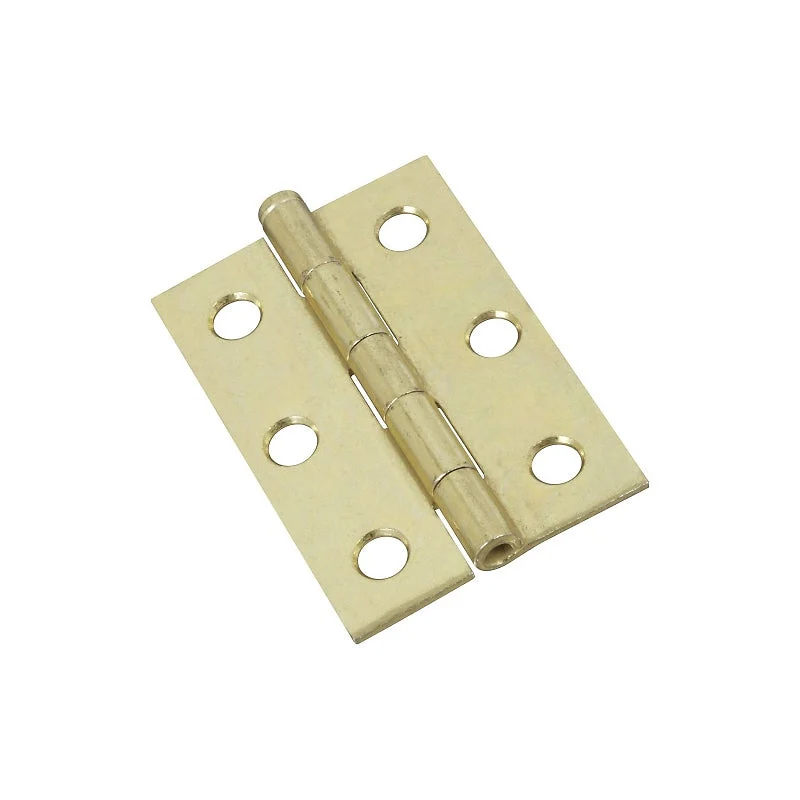

National Hardware N141-960 Narrow Hinge, 2-1/2 in W Frame Leaf, 0.056 in Thick Frame Leaf, Steel, Brass, 20 lb

National Hardware Narrow Hinge, 20 lb Weight, Door Leaf Width: 2-1/2 in, Door Leaf Thickness: 0.056 in, Frame Leaf Width: 2-1/2 in, Frame Leaf Thickness: 0.056 in, Number of Knuckles: 5, Pin Type: Removable, Loose, Pin Diameter: 0.128 in, Full Mortise Mounting, Number of Mounting Holes: 6, Mounting Hole Diameter: 0.218 in, Hole Spacing: 1 in, Cold Rolled Steel, Brass, Dimensions: 1-11/16 in L x 2-1/2 in W
Unit: EA
UPC: 038613141964
Model Number: N141-960

Features

• Swaged for mortise installations
• Loose pin allows doors to be removed without removing hinge

Additional Information

• Dimensions: 1-11/16 in L x 2-1/2 in W
• Door Leaf Thickness: 0.056 in
• Door Leaf Width: 2-1/2 in
• Finish: Brass
• Frame Leaf Thickness: 0.056 in
• Frame Leaf Width: 2-1/2 in
• Hole Spacing: 1 in
• Material: Cold Rolled Steel
• Mounting Hole Diameter: 0.218 in
• Mounting Type: Full Mortise
• Number of Knuckles: 5
• Number of Mounting Holes: 6
• Pin Diameter: 0.128 in
• Pin Type: Removable Loose
• Weight Capacity: 20 lb
