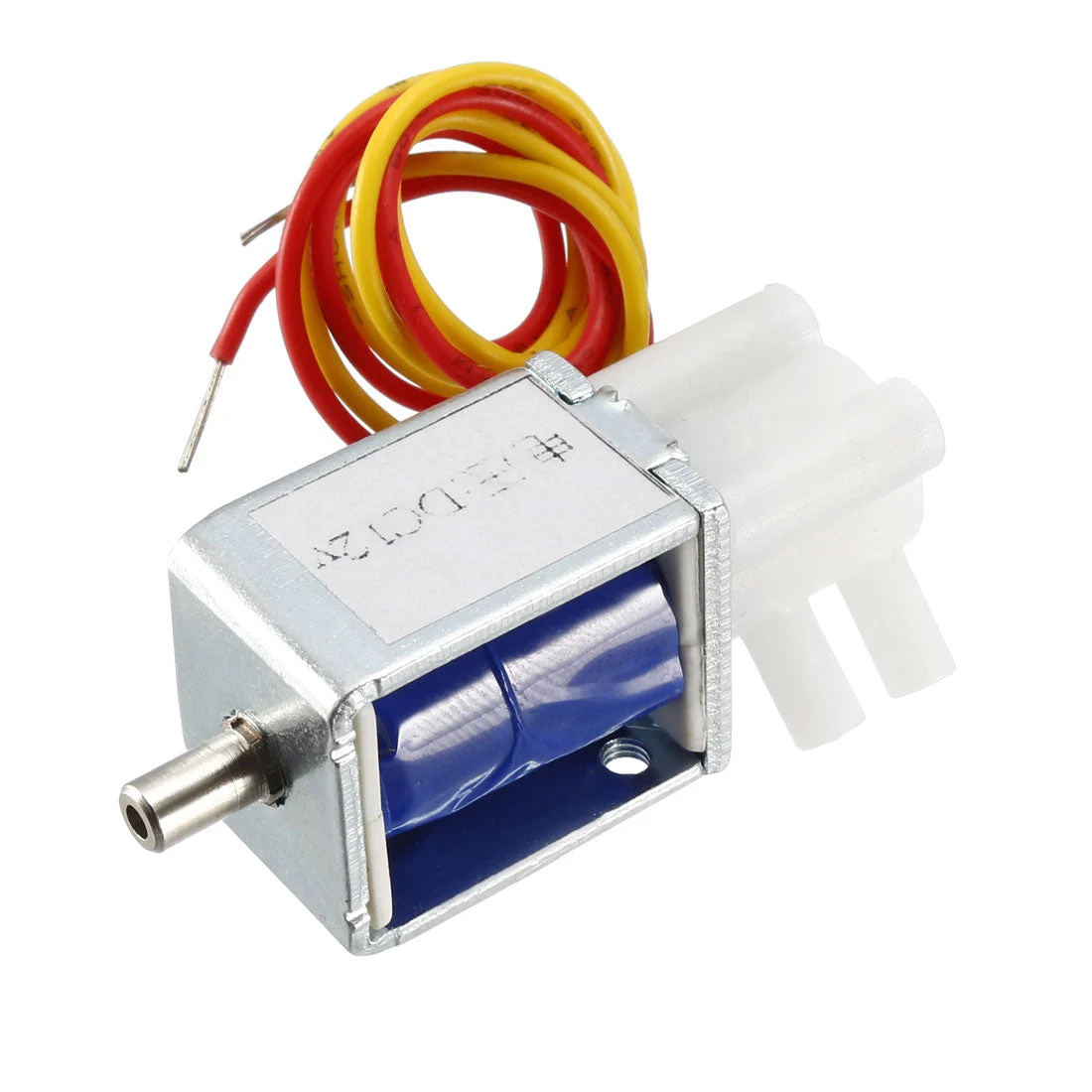

Miniature Solenoid Valve 2 Position 3 Way DC12V 0.19A Water Air Solenoid Valve

About this item

• Wire Length: 24cm / 9.4inch ; Package Content: 1 x Solenoid Valve
• Port Inner DIameter: 2mm ; Port Outer DIameter: 4mm
• Rated voltage: DC 12V ; Rated Current: 0.19A ; Type: 2 Position 3 Way
• Power off : Port 2-3 pass , 1 is blocked ; Power on : Port 1-2 pass, 3 is blocked.
• Can be used for gas valve and pump.Widely used in automatic control equipment.

Description:

It has low vibration and low power consumption.Reliable, compact, and simple to install.

Can be used for gas valve and pump.Widely used in automatic control equipment.

It will become hot when it works because there are so many coils inside. It’s normal phenomenon.

Features:

Rated voltage: DC 12V

Rated Current: 0.19A

Power: <2.3W

Type: 2 Position 3 Way

Port 1, 2, 3 Inner DIameter: 2mm

Port 1, 2, 3 Outer DIameter: 4mm

Wire Length: 24cm / 9.4inch

Total Size: 48 x 20 x 21mm / 1.89 x 0.79 x 0.83inch(L*W*H)

Solenoid operating instructions: Power off : 2-3 pass , 1 is blocked ; Power on : 1-2 pass, 3 is blocked.

Note : Wire is not divided for +/- connecting , both can do.



Package Content:

1 x Solenoid Valve
