About this item

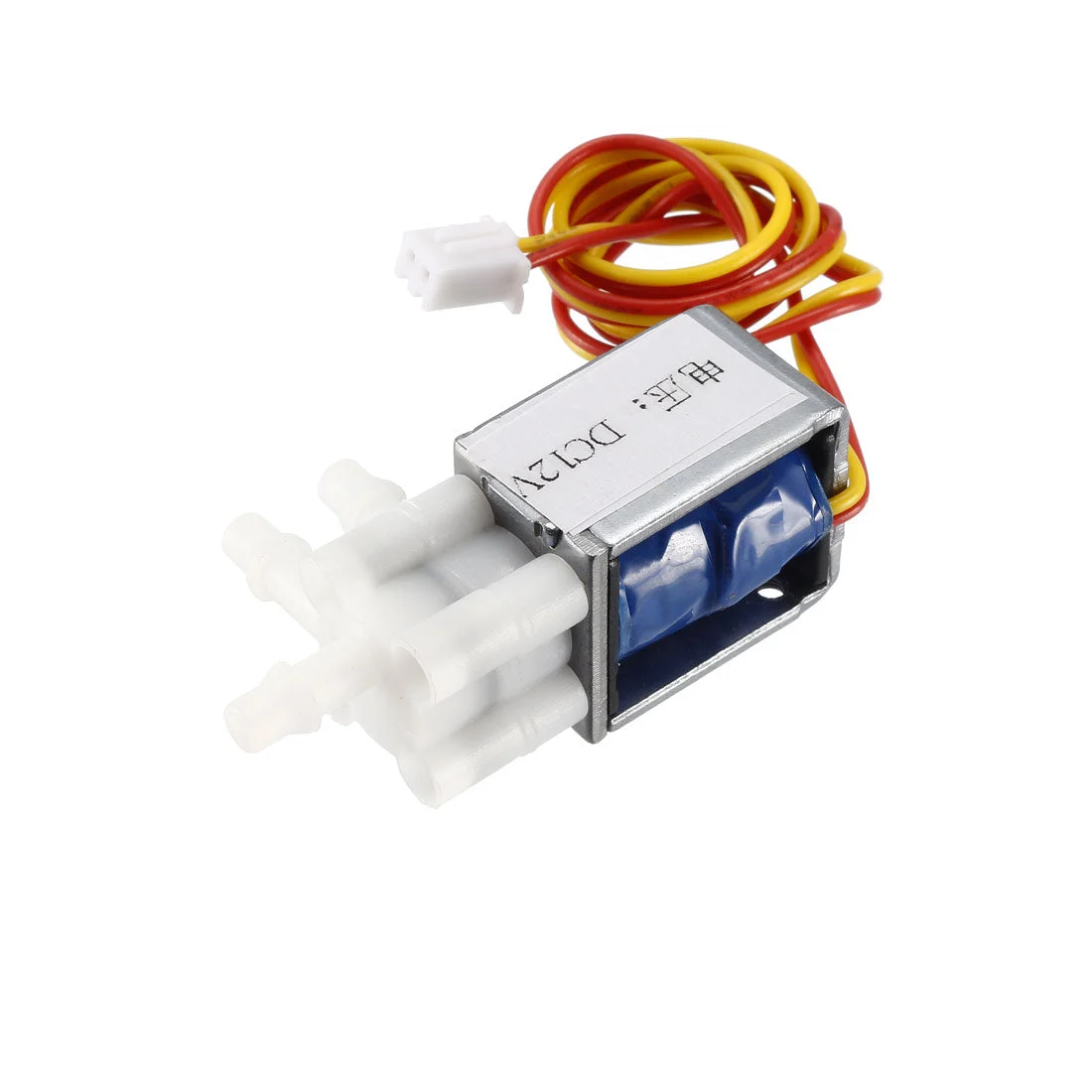

- Wire Length: 33cm / 13inch ; Package Content: 1 x Solenoid Valve
- Port Inner DIameter: 2mm ; Port Outer DIameter: 4mm
- Rated voltage: DC 12V ; Rated Current: 0.19A ; Type: 2 Position 3 Way Normally Open
- Power off : Port 2-3 pass , 1 is blocked ; Power on : Port 1-2 pass, 3 is blocked.
- Can be used for gas valve and pump.Widely used in automatic control equipment.
Description:
It has low vibration and low power consumption.Reliable, compact, and simple to install.
Can be used for gas valve and pump.Widely used in automatic control equipment.
It will become hot when it works because there are so many coils inside. It’s normal phenomenon.
Features:
Rated voltage: DC 12V
Rated Current: 0.19A
Power: 2.3W
Type: 2 Position 3 Way Normally Open
Connector Pitch : 2.54mm
Port 1, 2, 3 Inner DIameter: 2mm
Port 1, 2, 3 Outer DIameter: 4mm
Wire Length: 33cm / 13inch
Total Size: 50 x 20 x 27mm / 1.97 x 0.79 x 1.06inch(L*W*H)
Solenoid operating instructions: Power off : 2-3 pass , 1 is blocked ; Power on : 1-2 pass, 3 is blocked.
Package Content:
1 x Solenoid Valve
